RFID Hardware Platform
From continuous industrial labeling and compact touch operation to high-performance desktop printing, four Youlian models cover manufacturing, warehousing, retail, asset management, and item-label initialization.
Public pages use Youlian model numbers. Supplied RFID modules, interfaces, and media configurations follow the confirmed project list.

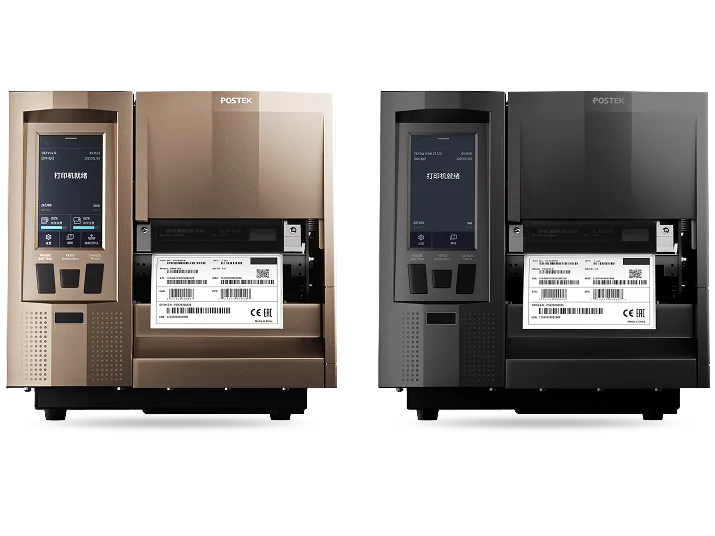

Supports UHF RFID label printing, encoding, and continuous large-roll media operation for manufacturing, logistics, and apparel labeling.
A compact metal enclosure, 4.5-inch touchscreen, and multiple network interfaces suit medium-volume label printing and encoding.

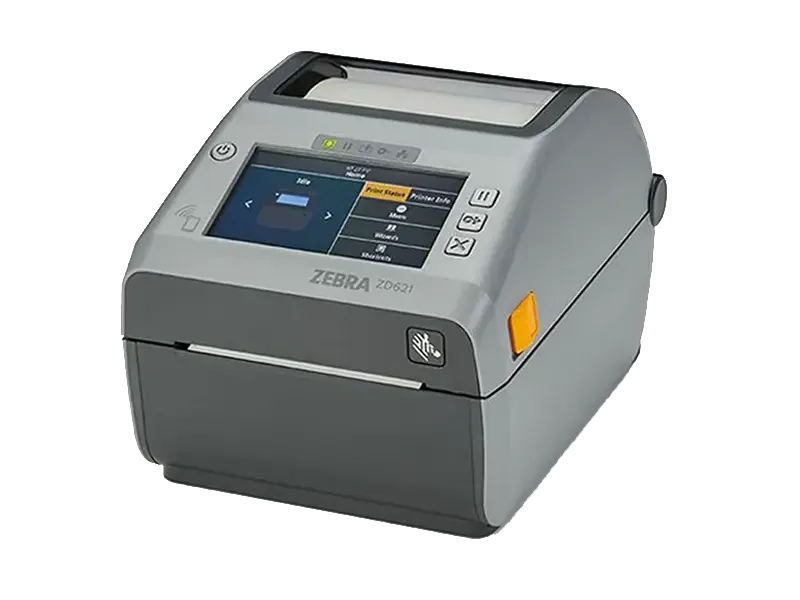

Corresponds to the Zebra ZD621, with direct thermal and thermal transfer printing, 203/300 dpi, and desktop labeling at up to 8 ips; the current specifications do not include RFID.

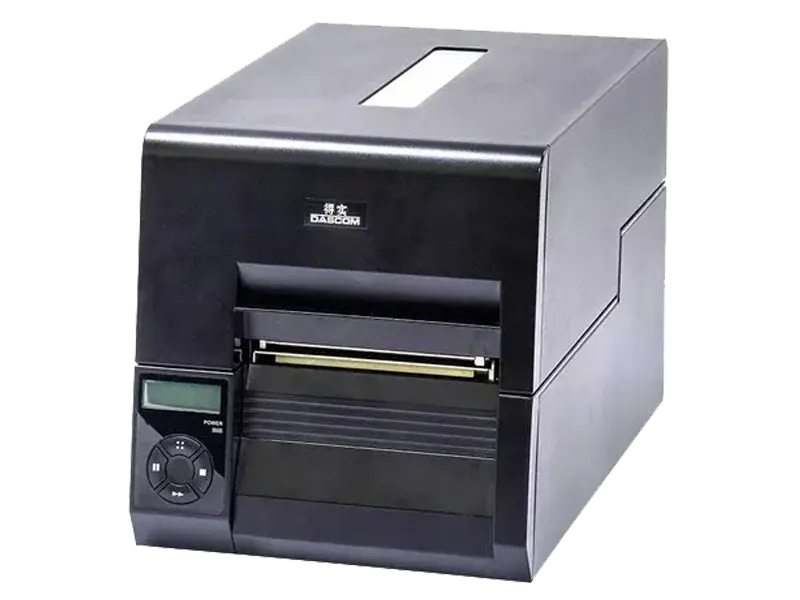

Corresponds to the Dascom DL-721/735, with a full-metal structure, direct thermal and thermal transfer printing, 203/300 dpi, and industrial labeling at up to 203 mm/s.
Compare print method, resolution, speed, media, and RFID configuration first, then confirm the final solution with the intended tags and system interfaces.
| Parameters | YL-RP100 | YL-RP200 | YL-RP300 | YL-RP400 |
|---|---|---|---|---|
| Product Positioning | Continuous Industrial Labeling | Compact Medium-Volume Labeling | High-Performance Desktop Labeling | Heavy-Duty Industrial Barcode Labeling |
| Print by | Thermal Transfer | Direct Thermal / Thermal Transfer | Direct Thermal / Thermal Transfer | Direct Thermal / Thermal Transfer |
| Resolution | 300dpi | 300dpi | 203 dpi; optional 300 dpi | 203/300dpi |
| Maximum Print Speed | 8ips | 8ips | 8ips（203dpi） | 8ips（DL-721） |
| Maximum Print Width | 106mm | 105.7mm | 104mm（203dpi）/108mm（300dpi） | 108mm/106mm |
| Maximum Ribbon Length | 600m | 300m | 300 m or 74 m | 360m |
| RFID Configuration | Standard UHF RFID Support | Factory Option | RFID Not Included in Current Specifications | RFID Not Included in Current Specifications |
The current specifications of the RP300 and RP400 do not include RFID encoding. Modules and interfaces follow the final supply list.
Connect label printing, RFID encoding, write verification, and business-data binding in one labeling workflow.
Print labels for materials, work in progress, and finished goods, and encode the corresponding EPC according to business rules.
Produce pallet, returnable-container, and item labels in batches for receiving, putaway, and inventory management.
Print human-readable information and bind RFID data for apparel, footwear, and retail merchandise.
Generate asset IDs, barcodes, and RFID codes for registration, inventory, and lifecycle tracking.
Share label dimensions, print volume, encoding requirements, and system interfaces so we can help confirm the model, media, and test plan.
