RFID Hardware Platform
From general industrial inventory to long-range reads up to 20 m and IP68-protected field work, three Youlian models cover mobile data capture for warehousing, manufacturing, retail, and asset management.
This page uses Youlian model numbers. Frequency bands, scan engines, and optional configurations are confirmed in the project configuration list.

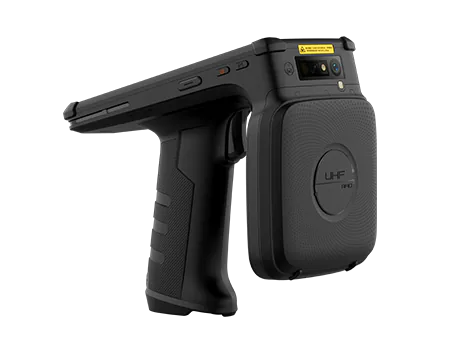

Combines UHF RFID, barcode scanning, and mobile connectivity for routine inventory, tool management, and field data capture.

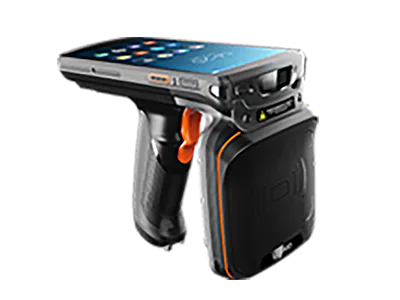

Designed for warehouse inventory, inbound and outbound verification, and long-range item finding, with a high-capacity battery and multiple mobile connectivity options.

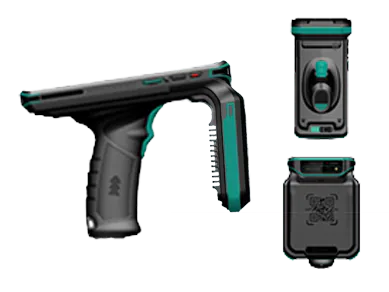

A 6-inch FHD display, 10,000 mAh battery, and IP68 protection for intensive inventory work and demanding industrial environments.
Start with read range, protection rating, and operating time, then confirm barcode, connectivity, and regional frequency options.
| Parameters | YL-RH100 | YL-RH200 | YL-RH300 |
|---|---|---|---|
| Product Positioning | General Industrial Inventory | Long-Range Inventory and Item Finding | Intensive, Rugged Operations |
| Operating System | Android 12 | Android 11 | Android 11 |
| Unit Dimensions | 170×80×132.7mm | 143.3×169×90.5mm | 177.6×77.2×45mm |
| Memory | 4 GB + 64 GB; optional 8 GB + 128 GB | 4GB+64GB | 4 GB + 64 GB; optional 6 GB + 128 GB |
| Display | 5.5 inches | 5.7 inches | 6-inch FHD+ |
| Battery | 6,700 mAh, replaceable | 9000mAh | 10,000 mAh, hot-swappable |
| Protection | IP67; 2 m drop protection | IP67; multiple 1.2 m drops | IP68; multiple 1.2 m drops |
| UHF Read Range | ≥9m | Up to 20 m | Approx. 15 m |
| Batch Read Rate | Up to 700 tags/s | Depends on module and tags | Up to 900+ tags/s |
Read range and batch rate vary with tag IC, tag size, mounting material, output power, and the operating environment. Use these figures together with project-specific test conditions.
Bring tag identification, barcode scanning, field verification, and back-office data together in one mobile workflow.
Read bin, pallet, and item tags in batches for inbound and outbound verification and exception review.
Verify fixed assets, tools, and high-value equipment against task lists at each checkpoint.
Use signal strength to locate specific merchandise and reduce search time in stores and stockrooms.
Capture process, work-in-progress, carrier, and personnel data for integration with MES and WMS workflows.
Share your tags, target read range, site photos, and integration requirements, and we can help with device selection and testing.
