RFID Hardware Platform
Three Youlian models cover medical-consumable issue and return, retail batch checkout, and integrated UHF self-checkout with printing and barcode scanning.
Public pages use Youlian model numbers. Read quantity, processing time, payment methods, and peripheral modules follow tag testing and the confirmed project list.
Designed for the issue, return, and inventory of hospital consumables and high-value supplies, with identity verification, UHF batch reading, and business-system integration.
An open merchandise reading bay and 22-inch touchscreen for multi-item self-checkout in apparel, footwear, and unattended retail.

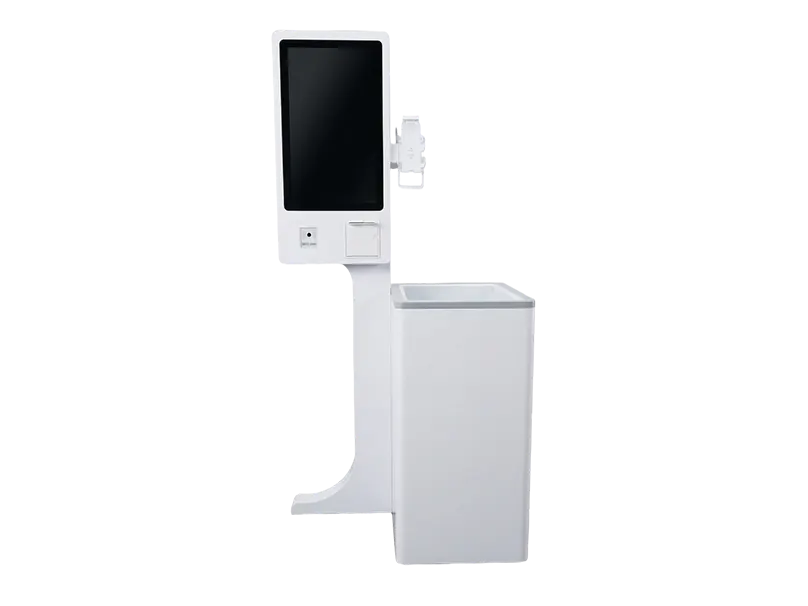

An integrated upright cabinet with UHF reading, a 21.5-inch touchscreen, 2D scanning, and 80 mm printing for fixed self-service points.
Start with the medical or retail workflow, operating system, and equipment form factor, then confirm tags, business interfaces, and optional modules.
| Parameters | YL-SC100 | YL-SC200 | YL-SC300 |
|---|---|---|---|
| Product Positioning | Medical Consumables Smart Checkout Kiosk | Retail Merchandise Self-Checkout Kiosk | Integrated UHF Self-Checkout Cabinet |
| Operating System | Android 11 | Windows; Optional Android | Android or Windows |
| Display | 21.5-inch Touchscreen | 22-inch Touchscreen | 21.5-inch Touchscreen |
| Unit Dimensions | 580×550×1752mm | 1243×890×650mm | 788×548×1664mm |
| RFID Configuration | Impinj E710, 8 Antennas | UHF 840–960MHz | Impinj E710, 4 Antennas |
| Peripherals and Connectivity | Ethernet and USB; identity, scanning, and Wi-Fi confirmed per project | Ethernet; Optional Scanning, Printing, Wi-Fi, and More | 2D Scanning, 80 mm Printer, and Multiple Network Protocols |
Batch quantity, processing time, and shielding range vary with tag performance, merchandise material, placement, power settings, and the site environment. Payment, printing, and identity modules depend on the project configuration.
Connect RFID batch reading, user or merchandise confirmation, checkout, and back-office records in one self-service workflow.
Verify users, read medical consumables or high-value supplies in batches, and record issue and return activity.
Read multiple item tags at once to support merchandise confirmation, checkout, and inventory updates.
Combine scanning, printing, or project-specific payment modules in a self-checkout station.
Connect to material records or business systems to log self-service issue, return, and exceptions.
Share merchandise or consumable tags, batch quantity, operating workflow, and system interfaces so we can help select and test the equipment.
