01
Shielded Read Area
Four antennas cover the equipment read area. Tune shielding range and stray-read control on site.
YL-SC300
UHF RFID Self-Checkout Cabinet
A UHF RFID checkout cabinet for retail and internal material self-service points, integrating a shielded read area, touch operation, barcode scanning, printing, and system connectivity in one upright unit.
21.5-inchCapacitive Touchscreen
4Built-in RFID Antennas
80mmThermal Printing
Up to 20 WUnit Power Consumption
Integrated RFID, Scanning, Printing, and System Connectivity
Use a focused tag-reading area and integrated peripherals to create a fixed self-service terminal.
02
RFID and Barcode Support
Supports EPC C1G2 tag reading with integrated 1D and 2D barcode scanning.
03
80 mm Thermal Printing
The integrated 80 mm thermal printer can produce receipts or operation records according to the business workflow.
04
Multi-Protocol System Connectivity
Supports network and project interfaces for merchandise, inventory, or self-service management systems.
Technical Specifications
Unit and Environment
- Product Form
- Upright UHF RFID Self-Checkout Cabinet
- Dimensions
- 788×548×1664mm
- Weight
- Approx. 65 kg
- Materials
- Aluminum Alloy and Tempered Glass
- Unit Power Consumption
- Up to 20 W
- Power Supply
- AC100–240V
- Operating Temperature
- -20°C to 50°C
- Storage temperature
- -40°C to 70°C
- Work Humidity
- 5%–95% RH, non-condensing
RFID and Display
- RFID Module
- Impinj E710, up to 33 dBm
- RFID Frequency Band
- 860–960MHz
- RFID Protocols
- ISO 18000-6C / EPC C1G2
- Antennas
- 4 built-in antennas
- Shielding Range
- 5–10 cm; validate with the tags and environment
- Display
- 21.5-inch Capacitive Touchscreen
- Operating System
- Android or Windows
Peripherals and Connectivity
- Barcode Scanning
- All-angle 1D/2D barcode scanning
- Printing
- 80 mm thermal printer
- Communication Interfaces
- RS-232 / TCP/IP / HTTP / MQTT
- Network Protocols
- TCP/IP、DHCP、SSH、FTP、Telnet、UDP
- Business Systems
- Connect merchandise, inventory, or management platforms through project interfaces
- Payment Method
- POS / scan / face pay
Shielding range and read performance vary with tags, power, merchandise material, and the site environment. Payment methods, third-party software platforms, and FCC, CE, RoHS, or other certifications require the final configuration and valid supporting documents.
Best for
01

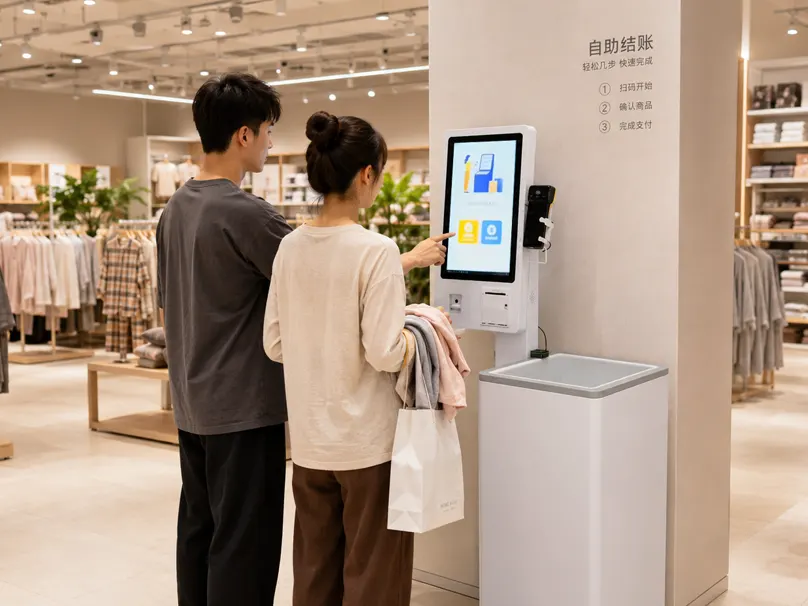

Fixed Self-Checkout Point
Deploy a fixed checkout device with integrated reading, scanning, and printing in the store.
02
Enterprise Internal Store
Connect internal merchandise or employee systems and record self-service purchases and checkout results.
03
Material Self-Issue
Read material tags in a controlled area and produce issue records or receipts.
04
Retail-System Integration
Exchange data with merchandise, inventory, and business-management platforms through network interfaces.
Get YL-SC300 Cabinet and Interface Configuration Advice
Share site dimensions, tag samples, print content, and system interfaces to confirm the read area, peripherals, and software scope.
