01
Open-Bay Batch Reading
Read UHF tags in batches after merchandise is placed in the reading area. Validate quantity and timing for the tags and placement method.

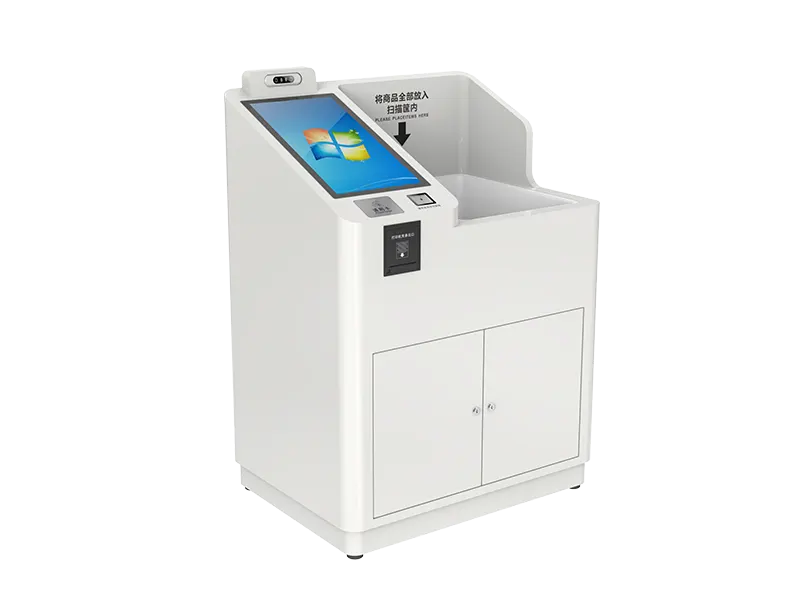

YL-SC200
Retail RFID Self-Checkout Kiosk
An RFID self-checkout kiosk for apparel, footwear, and unattended retail that reads merchandise tags in batches within an open bay and supports item confirmation, checkout, and inventory updates.
22-inchCapacitive Touchscreen
3–5 sRead Time
≥10 ItemsSingle-Read Item Count
840–960MHzUHF Frequency Band

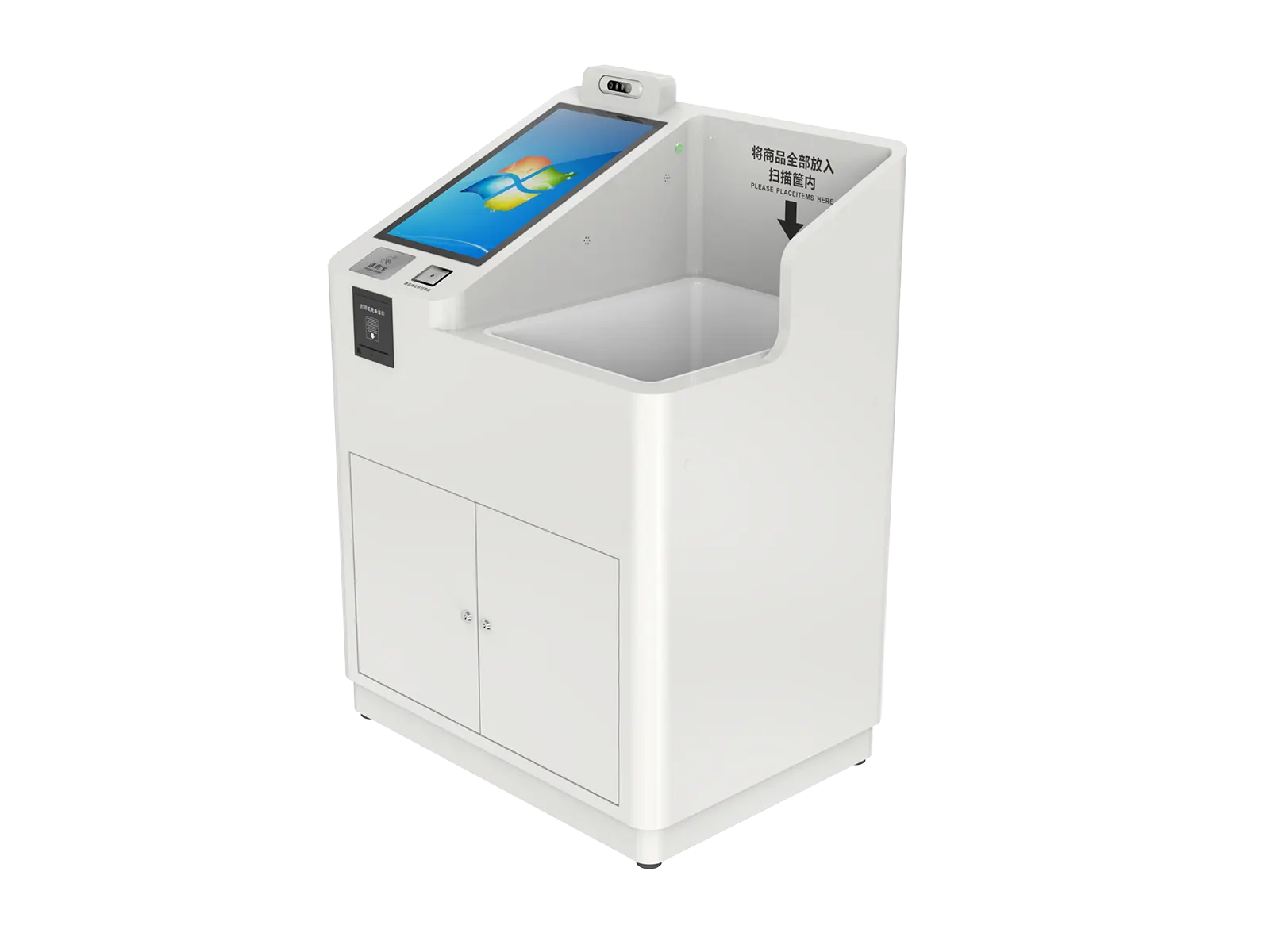

Open Merchandise Reading Bay for Retail Checkout
Combine multi-item tag reading, merchandise confirmation, and business-system updates in one self-service station.
02
22-inch Touch Interaction
The 1920 × 1080 capacitive touchscreen displays item lists, operating steps, and checkout results.
03
Retail Workflow Integration
Connect merchandise, sales, and inventory systems by project and support workflows such as tag security-bit updates.
04

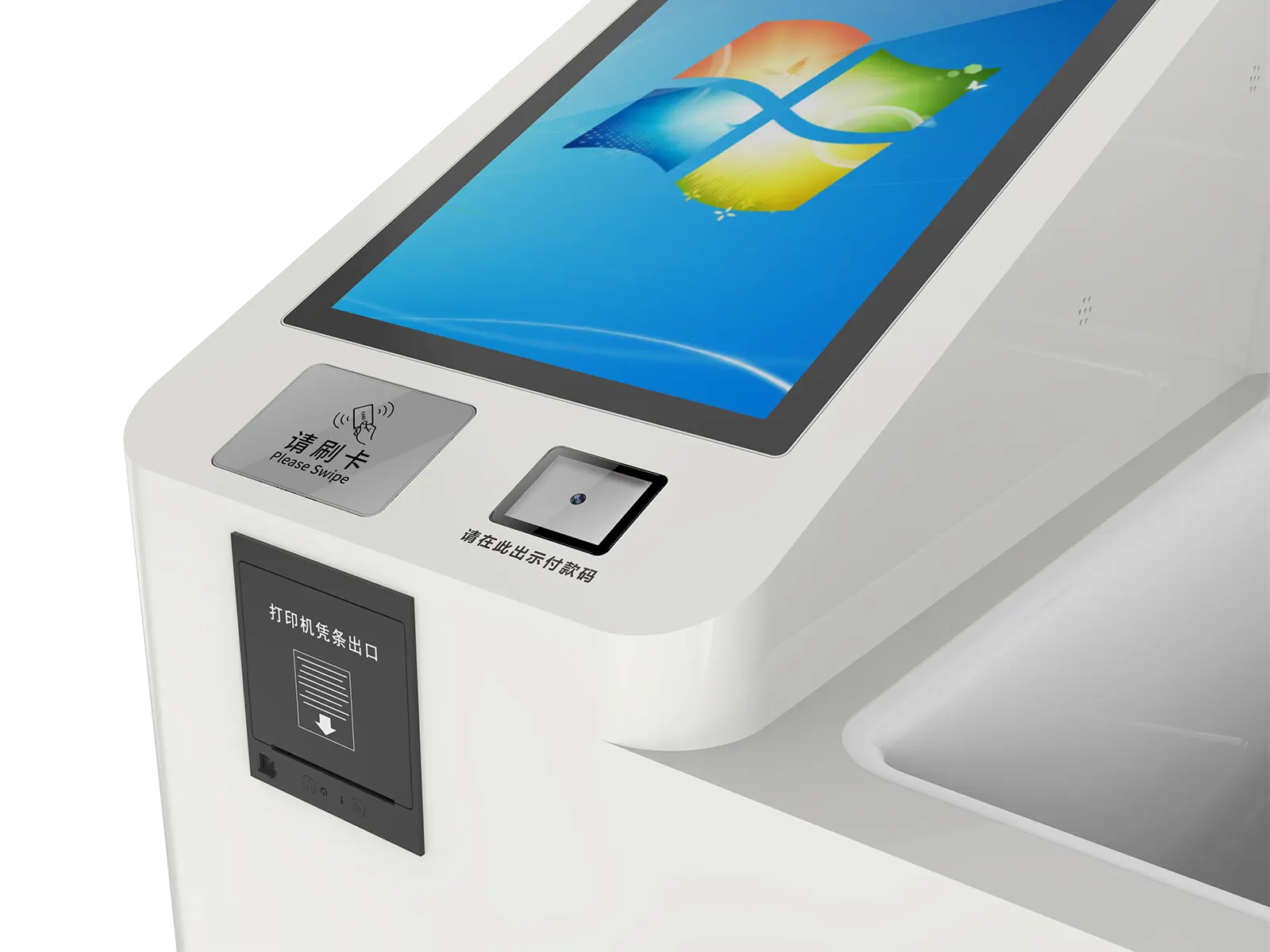

Peripheral Expansion
Barcode scanning, printing, Wi-Fi, and project-specific payment modules are available according to the implementation list.
Technical Specifications
Unit and Display
- Product Type
- Open Retail Self-Checkout Kiosk

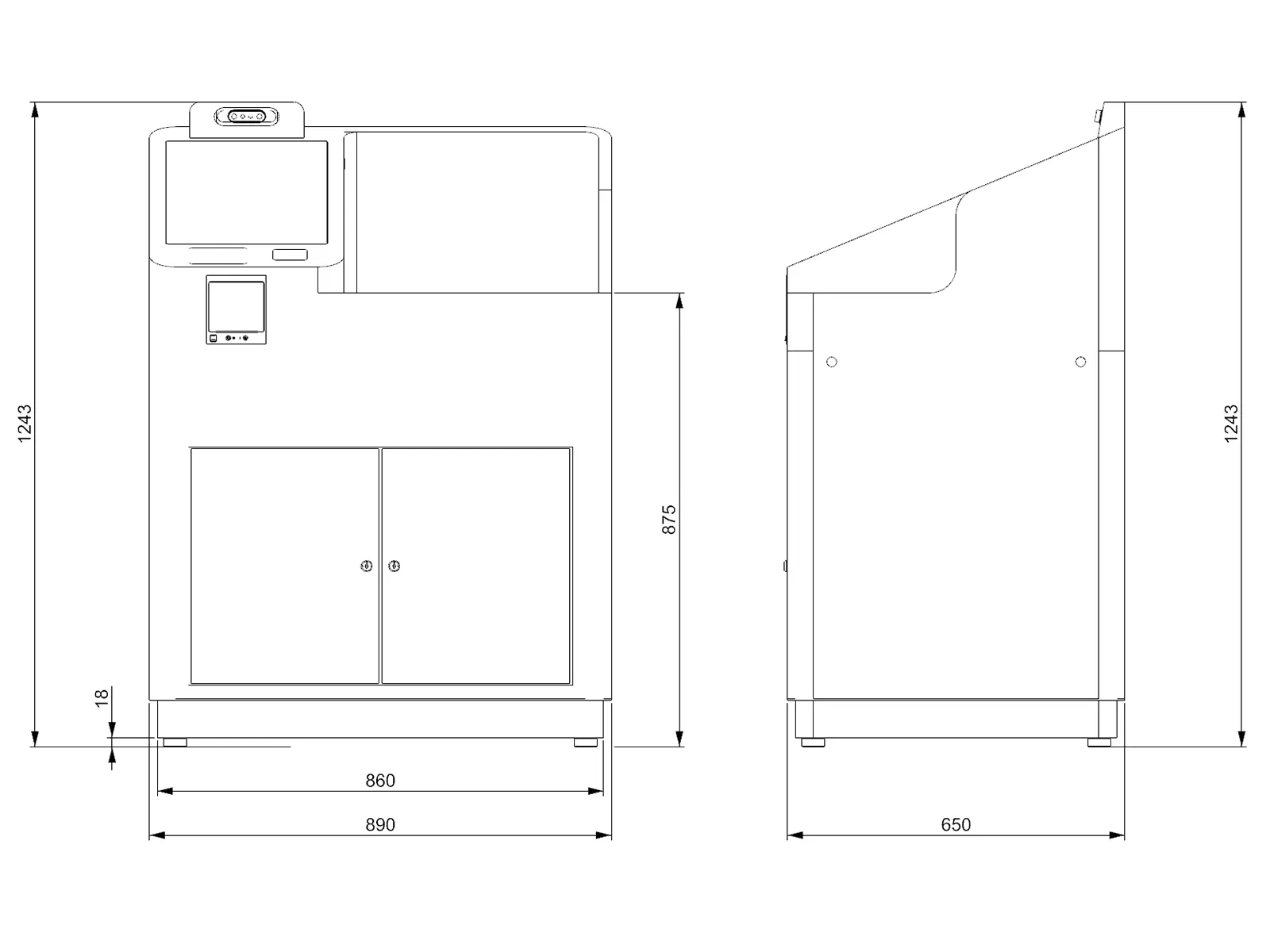

- Dimensions
- 1243×890×650mm
- Display
- 22-inch capacitive touchscreen, 1920 × 1080
- Installation
- Indoor floor-standing installation with casters
- Power Supply
- AC220V
System and RFID
- Operating System
- Windows standard; Android optional
- Windows Configuration
- Intel i5, 8 GB RAM, 128 GB SSD
- Android Configuration
- RK3399、4GB+32GB
- RFID Frequency Band
- 840–960MHz
- RFID Protocols
- ISO 18000-6C / EPC C1G2
- Read Time
- 3–5 s; test conditions pending
- Batch Quantity
- at least 10 items; validate with the tags and placement method
Interfaces, Options, and Environment
- Networking
- Ethernet
- Barcode Scanning
- Optional QR Code Module
- Printing
- Optional Receipt Printer
- Wireless Connectivity
- Optional Wi-Fi
- Other Modules
- Facial recognition and project-specific payment modules configured as needed
- Operating Temperature
- 0°C to 60°C
- Work Humidity
- 10%–90%RH
The 3–5-second read time and the at-least-10-item quantity require validation for merchandise material, tag performance, placement, and software workflow. Payment is not a standard-configuration commitment, and final dimensions follow the physical unit and confirmed drawing.
Best for
01
Apparel Store Self-Checkout
Read apparel hangtag labels in batches, display the merchandise list, and continue to checkout.
02
Footwear and Accessories Retail
Reduce item-by-item scanning and synchronize merchandise and inventory data.
03
Unattended Retail Stores
Combine project-specific payment and receipt modules in a self-checkout point.
04
Store Tag Status Update
Process sales records and tag security-bit updates according to the business workflow.
Get a YL-SC200 Merchandise Reading Test Plan
Share merchandise samples, tag specifications, batch quantity, and checkout workflow to confirm the reading bay, system interfaces, and optional modules.
