RFID Hardware Platform
From transparent and slim upright gates to dual-sensor and radar-triggered overhead gates, four Youlian models cover retail loss prevention, warehouse access, asset control, and material movement detection.
This page uses Youlian model numbers. Passage width, direction detection, optional connectivity, and on-site read performance are confirmed through site survey and testing.
A transparent acrylic and sheet-metal structure with two narrow-beam antennas and one infrared sensor pair per panel, expandable through multi-panel gate combinations for wider passages in stores and controlled areas.
A 57 mm slim upright structure with an 8 dBi circularly polarized antenna for entrances that require passage space and stable reading.

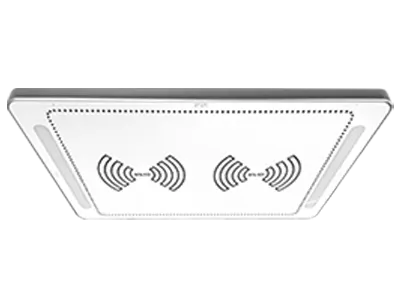

A 27 mm slim overhead structure with dual sensing, narrow-beam antennas, and audible and visual indicators for visually open entrances.

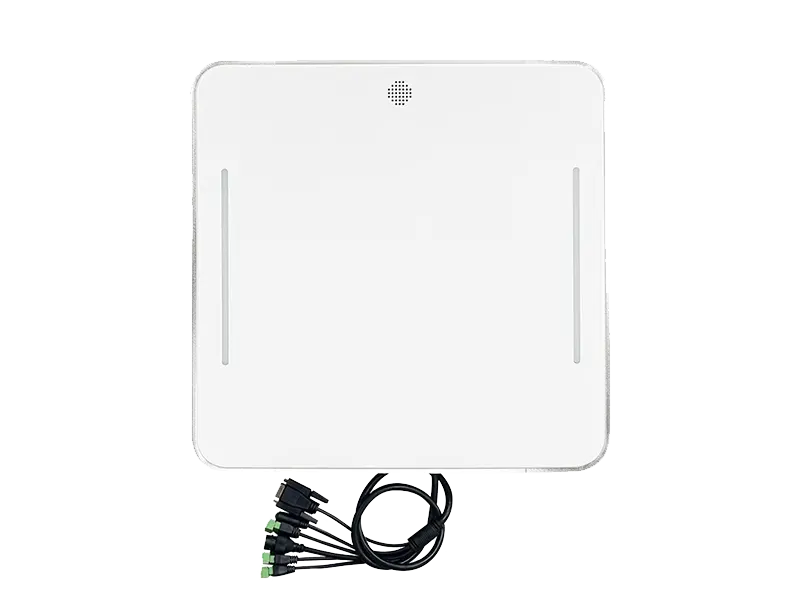

Combines 60–64 GHz radar with UHF reading for controlled entrances requiring moving-target triggering and overhead installation.
Start with upright or overhead installation, trigger method, and passage conditions, then confirm antennas, connectivity, power, and commissioning requirements.
| Parameters | YL-GT100 | YL-GT200 | YL-GT300 | YL-GT400 |
|---|---|---|---|---|
| Product Positioning | Transparent Upright Gate | Slim Upright Gate | Dual-Sensor Overhead Gate | Radar-Triggered Overhead Gate |
| Dimensions | 340×95×1460mm | 371×57×1505mm | 600×390×27mm | 500×500×45mm |
| Antenna Configuration | 4 Narrow-Beam Circularly Polarized Antennas | 8 dBi Circularly Polarized Antenna | 2 Narrow-Beam Antenna Sets | 12 dBi Circularly Polarized Antenna |
| Trigger Method | 2 Infrared Sensor Pairs | 2 Infrared Sensor Pairs | Dual-Sensor Direction Detection | 60–64 GHz Radar Trigger |
| Wired Connectivity | RJ45、RS232 | RJ45、RS232 | RJ45 | TCP/IP, RS232, or RS485 |
| Wireless Connectivity | Confirm by Project | Confirm by Project | Optional Wi-Fi | Optional Wi-Fi, Bluetooth, and 4G |
Read range, read rate, and stray-read control vary with tag performance, installation position, passage width, walking speed, and the surrounding environment. Confirm them through on-site testing.
Connect tag identification, passage decisions, audible and visual alarms, and back-office event records in one access-control workflow.
Identify item-tag passage status and link it with sales allowlists and exception alerts.
Capture pallet, returnable-container, and item tags in batches to support movement records.
Record authorized movement and unauthorized removal of assets, tools, and high-value equipment.
Enable automatic identification and alerts for books, archives, consumables, and exhibits moving through a passage.
Share passage dimensions, site photos, tag samples, and integration requirements, and we can help with device selection and testing.
