01

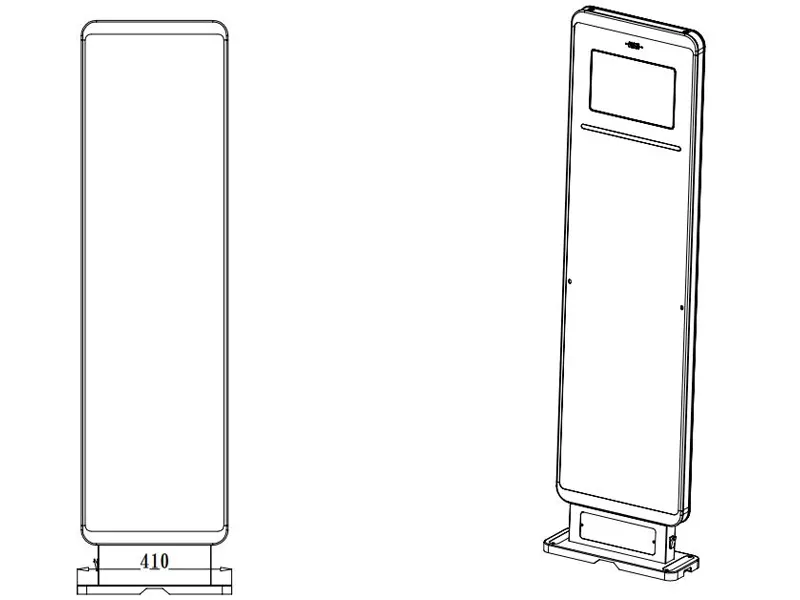

57 mm Slim Structure
The 371 × 57 × 1505 mm upright enclosure supports passage planning in limited entrance space.
YL-GT200
Slim Upright RFID Security Gate
A slim upright RFID gate for stores, warehouses, and asset control, using aluminum profiles and engineering plastic to balance passage space, stability, and system integration.
57mmSlim Enclosure
8dBiCircularly Polarized Antenna
20,000 RecordsEPC Data Buffer
30.3kgNet Weight

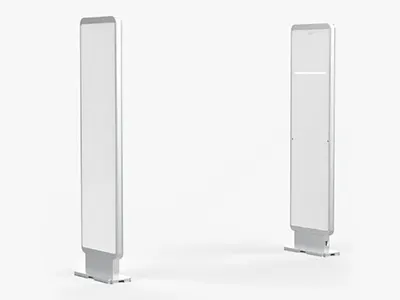

Slim Upright Deployment for Fixed Passages
Integrates UHF reading, data buffering, and wired connectivity in a slim enclosure for store and warehouse systems.
02
8 dBi Circularly Polarized Antenna
Covers tags at different orientations; tune the actual read zone for the tags and passage environment.
03
Local Data Buffer
Buffers up to 20,000 EPC records to support short network interruptions and event traceability.
04
Wired System Integration
Supports RS232, TCP/IP, HTTP(S), and RJ45 for management-platform integration.
Technical Specifications
Structure and Installation
- Product Form
- Slim Upright Gate
- Dimensions
- 371×57×1505mm
- Net Weight
- Approx. 30.3 kg
- Gross Weight
- Approx. 39.4 kg
- Material
- Engineering plastic panel with an aluminum alloy body
- LED Light Bar
- Red/green dual-color by default; red/green/blue tri-color optional
- Trigger
- 2 Infrared Sensor Pairs
- Installation
- Surface-mounted installation with a stainless-steel cable raceway
RFID and Connectivity
- Operating Frequency
- 865–868 MHz / 902–928 MHz (adjustable by country or region)
- Output Power
- Software-adjustable in ±1 dB steps, up to 33 dBm
- Operating Modes
- Master/slave mode / standalone mode / trigger mode
- Antennas
- 8 dBi Circularly Polarized Antenna
- Signal Data
- RSSI supported
- Data Buffer
- 20,000 records @ 96-bit EPC
- Communication Interfaces
- RS232、TCP/IP、HTTP(S)、RJ45
- Network Protocols
- TCP/IP、DHCP、SSH、FTP、Telnet、UDP
Power and Environment
- Unit Power Consumption
- 5–24W
- Power Supply
- 100-240 VAC, 50/60 Hz input; 12 VDC/5 A output; supports 12-24 VDC/5 A input
- Operating Temperature
- -10°C to 50°C
Passage width, direction detection, LED expansion model, and read performance require project confirmation. Test with the intended tags before installation.
Best for
01
Retail Store Passage
Read item tags and trigger exception events in entrances with limited space.
02
Warehouse Receiving and Shipping Passage
Capture item, returnable-container, and pallet tags in batches for movement verification.
03
Equipment and Asset Exit
Record equipment and asset movement against approval and authorization status.
04
Library and Archive Entrance
Read book, archive, and document tags in contactless batches.
Get YL-GT200 Passage Planning Advice
Share clear entrance width, tag type, and system interfaces to confirm device spacing, read zone, and installation conditions.
