01
UHF Batch Reading
Supports EPC C1G2 / ISO 18000-6C tags for dense inventory and targeted tag finding.

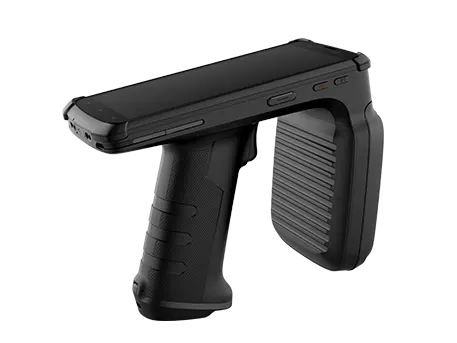

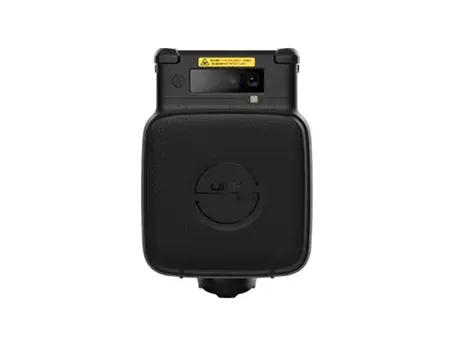

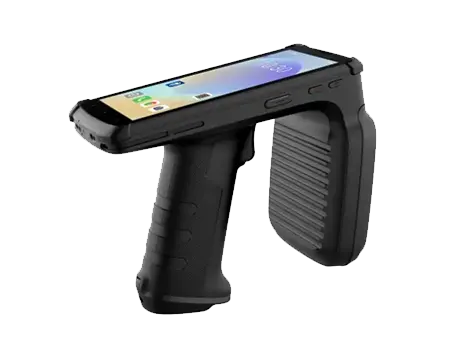

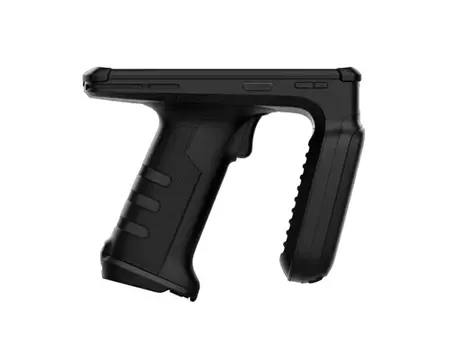

YL-RH100
Industrial RFID Handheld Reader
An industrial Android handheld reader for warehouse, asset, and tool inventory, combining UHF batch reading, barcode scanning, mobile connectivity, and field data capture.
Android 12Enterprise Mobile Platform
≥9mUHF Read Range
IP67Industrial Dust and Water Protection
6700mAhReplaceable Battery
Designed for Frequent Mobile Operations
Combine RFID reading, barcode scanning, connectivity, and task processing in one device so field teams can work without switching equipment.
02
Barcode and Data Capture
Optional 1D and 2D scan engines support data capture for materials, assets, and work orders.
03
2 m Drop Protection
IP67 protection and a 2 m drop rating suit warehouses, workshops, outdoor inspections, and other demanding environments.
04
Replaceable High-Capacity Battery
The 6,700 mAh battery supports QC3.0 fast charging for shift work and extended mobile operation.
Technical Specifications
System and Mechanical
- Operating System
- Android 12
- Processor
- MTK 8788 octa-core 2.0 GHz
- Memory
- 4 GB + 64 GB; optional 8 GB + 128 GB
- Storage Expansion
- MicroSD up to 256 GB
- Display
- 5.5 inches, 1440 × 720
- Dimensions
- 170 × 80 × 132.7 mm; main unit thickness 16.4 mm
- Weight
- Approx. 580 g including battery
RFID and Protection
- Frequency band
- 860–930 MHz; 902–928 MHz by default
- Protocol
- EPC C1G2 / ISO18000-6C
- Antennas
- 5 dBi circularly polarized antenna
- Output Power
- 1-33 dBm adjustable
- Read Distance
- ≥9m
- Write Distance
- Range: 0-6 m; verify with target tags
- Batch Read Rate
- Up to 700 tags/s (tested with Impinj H47)
- Protection
- IP67; 2 m drop protection
- Battery
- 6,700 mAh replaceable battery; QC3.0 fast charging
Data Capture, Connectivity, and Environment
- Barcode Scanning
- 2D scan engine, 1080 × 1280 at 60 fps
- Cameras
- 5 MP front; 13 MP rear
- Wireless Connectivity
- Wi-Fi 5, 4G, Bluetooth; optional NFC
- Operating Temperature
- -20°C to 50°C
- Storage temperature
- With battery: -40°C to 60°C; without battery: up to 70°C
Read range and batch rate vary with tags, materials, mounting, power, and on-site interference. Test with the intended tags in the actual environment before deployment.
Best for
01
Fixed Asset Inventory
Verify assets, locations, custodians, and status in batches against task lists.
02
Tools Management
Support mobile workflows for issue, return, inspection, and exception tracking.
03

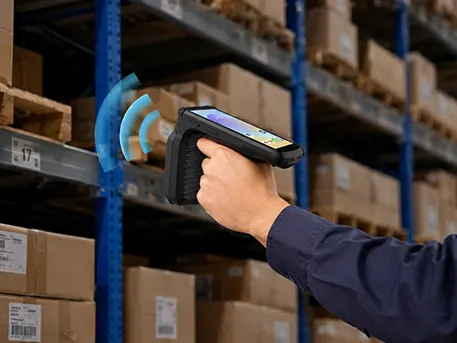

Warehouse Receiving and Shipping
Use RFID and barcodes for receiving, picking, verification, and shipping.
04
Field Inspection
Submit equipment, personnel, and work-order data over wireless networks in real time.
Get YL-RH100 Selection and Testing Advice
Share tag types, site conditions, and integration requirements to confirm the right frequency, scanning, and connectivity configuration.
