01
High-Speed Batch Reading
The high-performance version can read 900+ tags/s for dense merchandise and frequent inventory work.

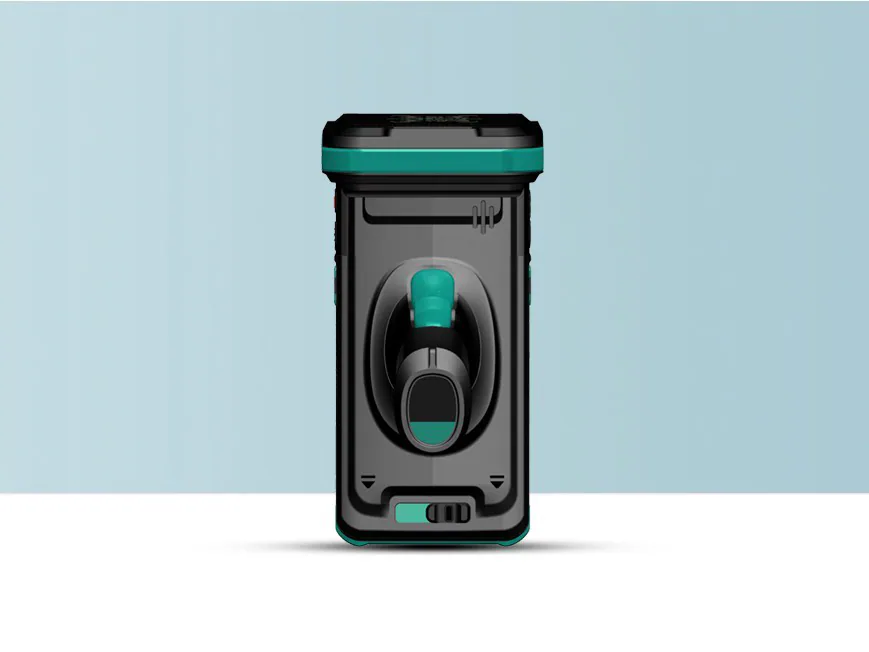

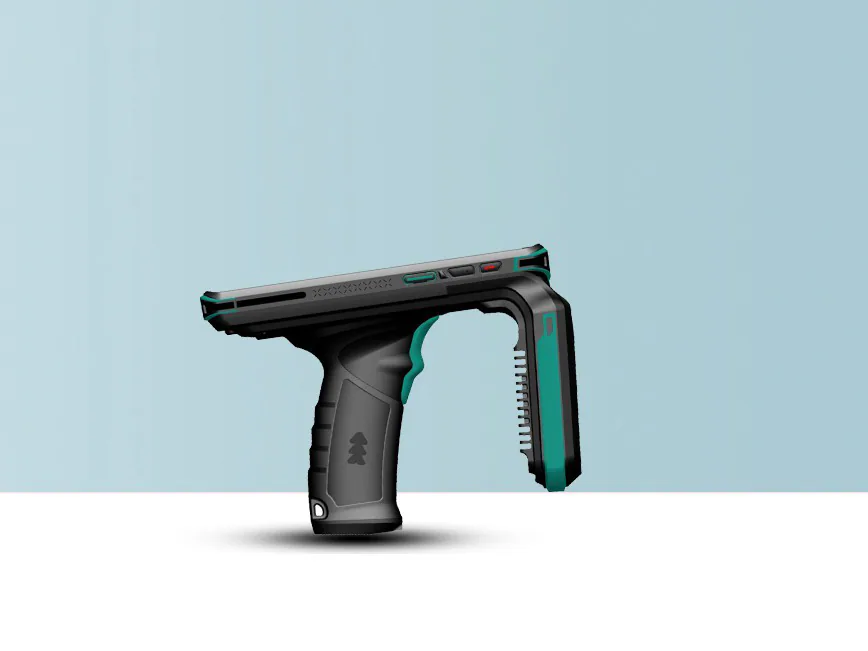

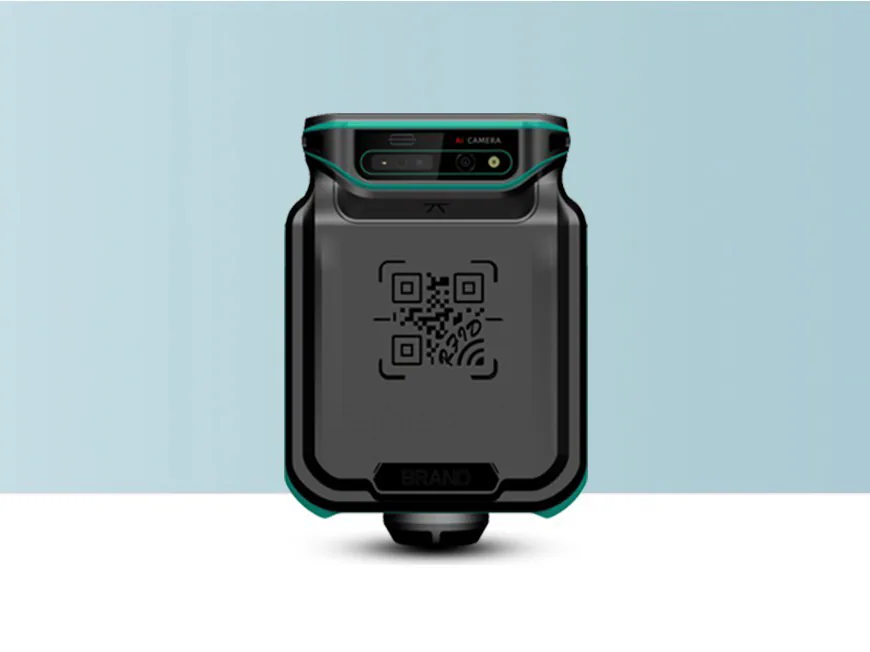

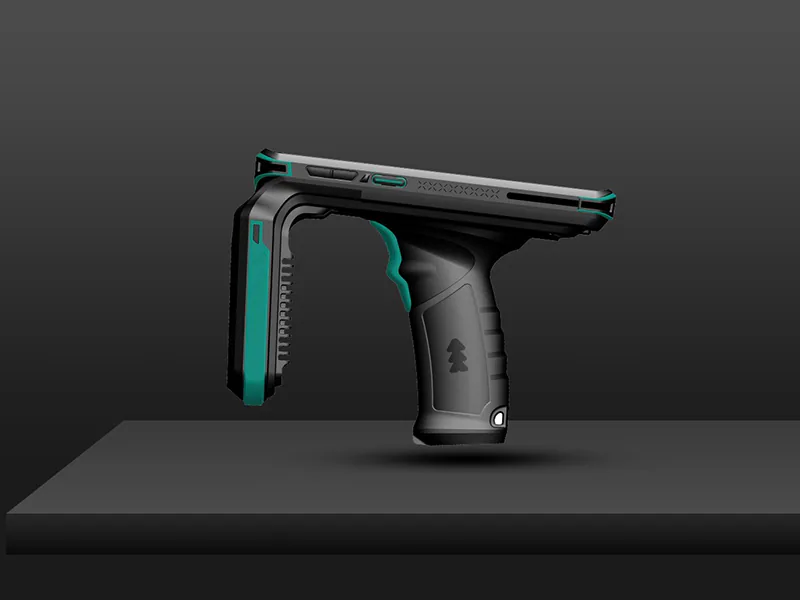

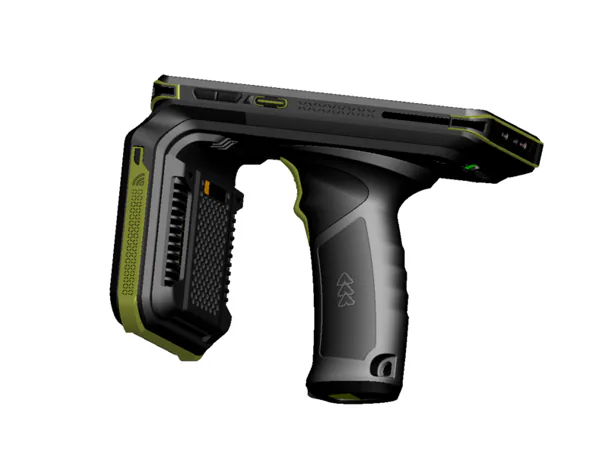

YL-RH300
Rugged RFID Handheld Reader

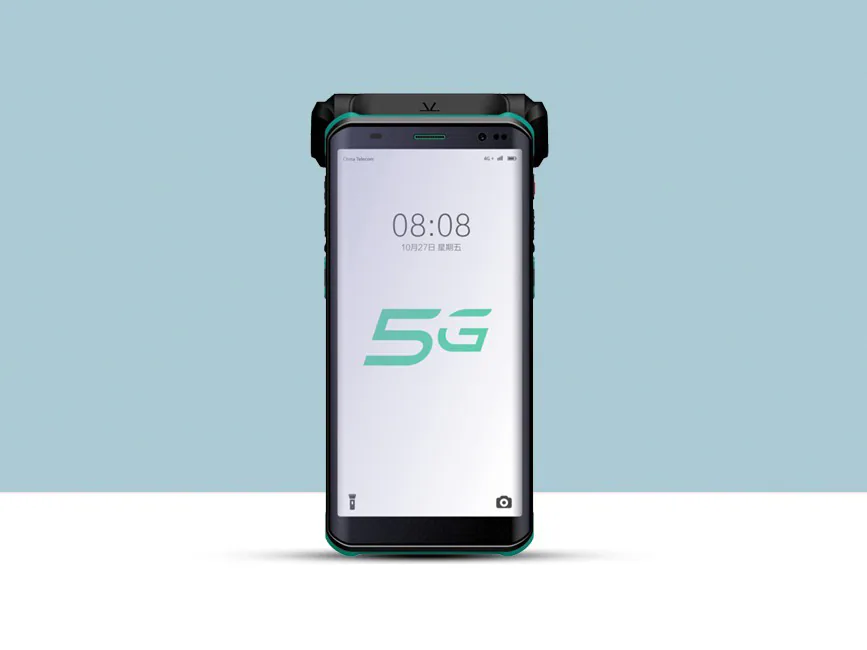

A 6-inch FHD display, 10,000 mAh battery, and IP68 protection support extended operation in demanding environments for intensive inventory, logistics verification, and industrial mobile data capture.
900+Tags/s Batch Read Rate
Approx. 15 mLong-Range UHF Reading
IP68High-Level Industrial Protection
10000mAhHot-Swappable Battery
A Performance Package for Intensive Inventory
Balances read rate, battery capacity, protection, and display usability for shift work and continuous operation in demanding environments.
02
Approx. 15 m Reading
The circularly polarized antenna supports long-range inventory and targeted tag finding across a wider work area.
03
IP68 Protection
Withstands multiple 1.2 m drops and suits dusty, wet, and wide-temperature industrial environments.
04
Keep Working Through Battery Changes
The 10,000 mAh battery supports fast charging and hot swapping to reduce interruptions during shift work.
Technical Specifications
System and Mechanical
- Operating System
- Android 11
- Processor
- Qualcomm octa-core 2.0 GHz
- Memory
- 4 GB + 64 GB; optional 6 GB + 128 GB
- Display
- 6-inch FHD+, 2160 × 1080
- Dimensions
- 177.6×77.2×45mm
- Weight
- Approx. 580 g
- Battery
- Rated 10,000 mAh, nominal 10,300 mAh; QC3.0 fast charging and hot-swap support
RFID and Protection
- RFID Module
- Impinj E710 high-performance version or E310 standard version
- Frequency band
- China 920–925 MHz; US 902–928 MHz; Europe 865–868 MHz; other national frequency standards available by customization
- Protocol
- EPC C1G2 / ISO18000-6C
- Antennas
- 3 dBi ceramic antenna or 5 dBi circularly polarized antenna
- Output Power
- 5-33 dBm adjustable
- Read Distance
- ≥15 m (33 dBm, circularly polarized antenna, open-area white-card test)
- Batch Read Rate
- E710 version: ≥900 tags/s; standard version: ≥300 tags/s
- Protection
- IP68; multiple 1.2 m drops; 300 tumbles at 0.5 m
Data Capture, Connectivity, and Environment
- Barcode Scanning
- Optional ME5066, SE4710, N6703, and other scan modules
- Cameras
- 5 MP front; 16 MP rear
- Other Data Capture
- Optional NFC
- Operating Temperature
- -20°C to 60°C
- Storage temperature
- -40°C to 70°C
- Work Humidity
- 5%–95% RH, non-condensing
- ESD Protection
- ±15 kV air discharge; ±8 kV contact discharge
Read range and batch rate depend on the UHF module, tags, power, and site conditions. This page uses a conservative range of approximately 15 m; longer ranges require confirmation under specified test conditions.
Best for
01
High-Density Warehouse Inventory
Read dense item, pallet, and returnable-container tags quickly to shorten full inventory counts.
02
Manufacturing Data Capture
Capture material, work-in-progress, carrier, and process data on shop floors and production lines.
03
Outdoor Asset Inspection
Use IP68 protection to handle dust, rain, drops, and temperature changes.
04
Logistics Loading Verification
Verify goods and documents in batches during loading, unloading, and handover.
Get YL-RH300 Selection and Site Testing Advice
Share workload, tag types, and environmental conditions to confirm the module version, frequency band, and supporting configuration.
