01
Compact Enclosure

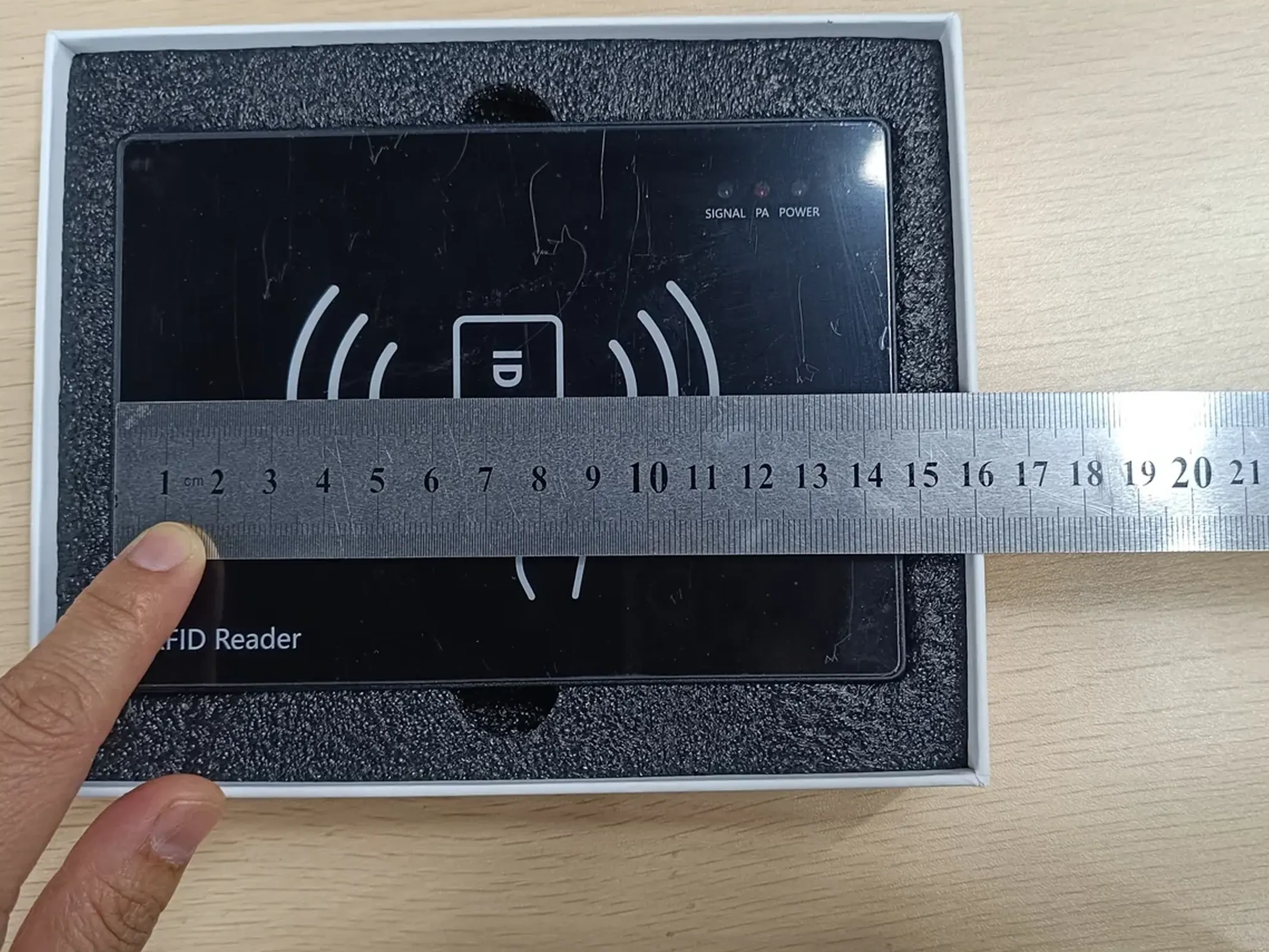

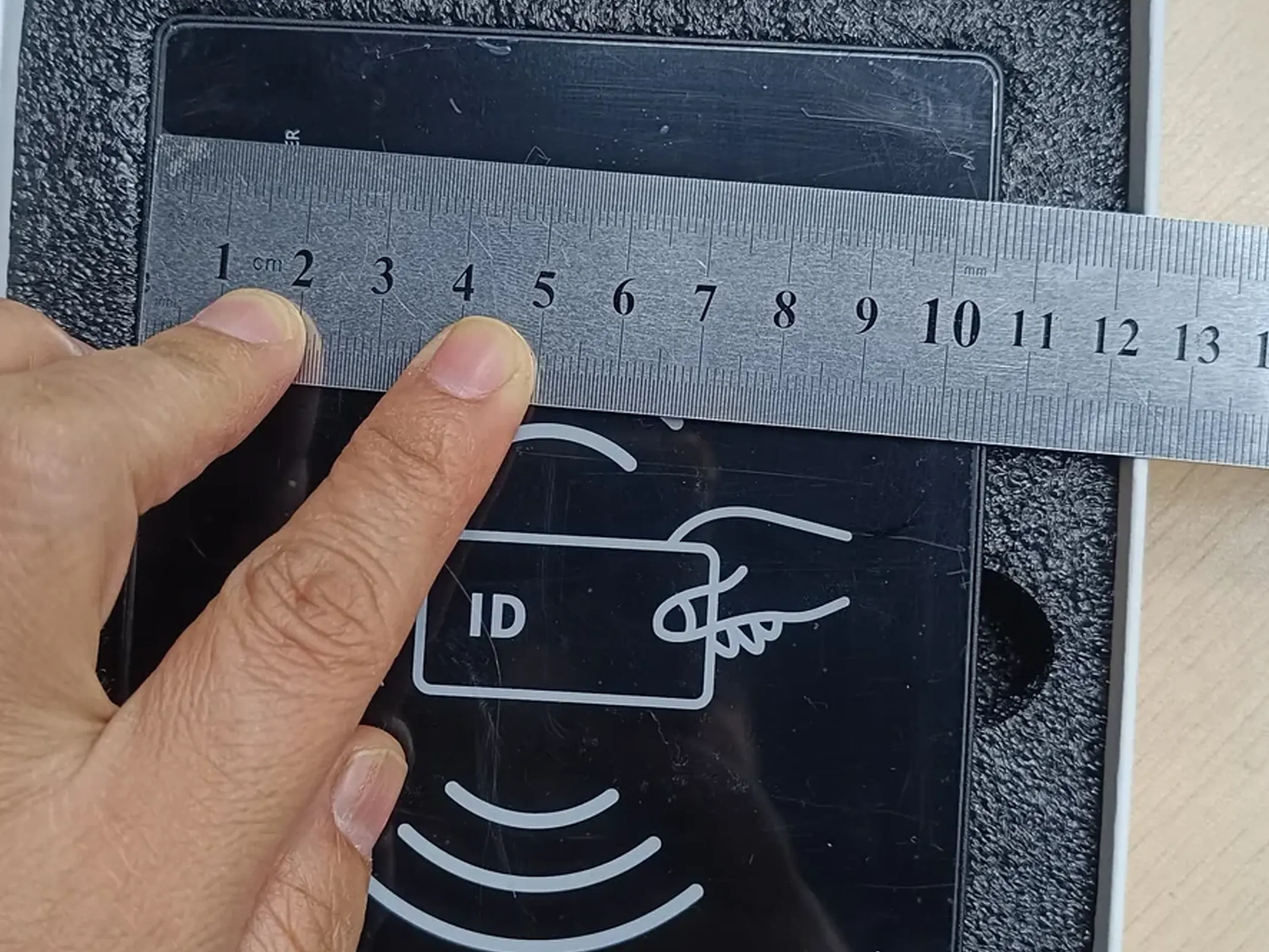

The 149 × 107 × 14 mm enclosure fits service windows, counters, and fixed workstations.

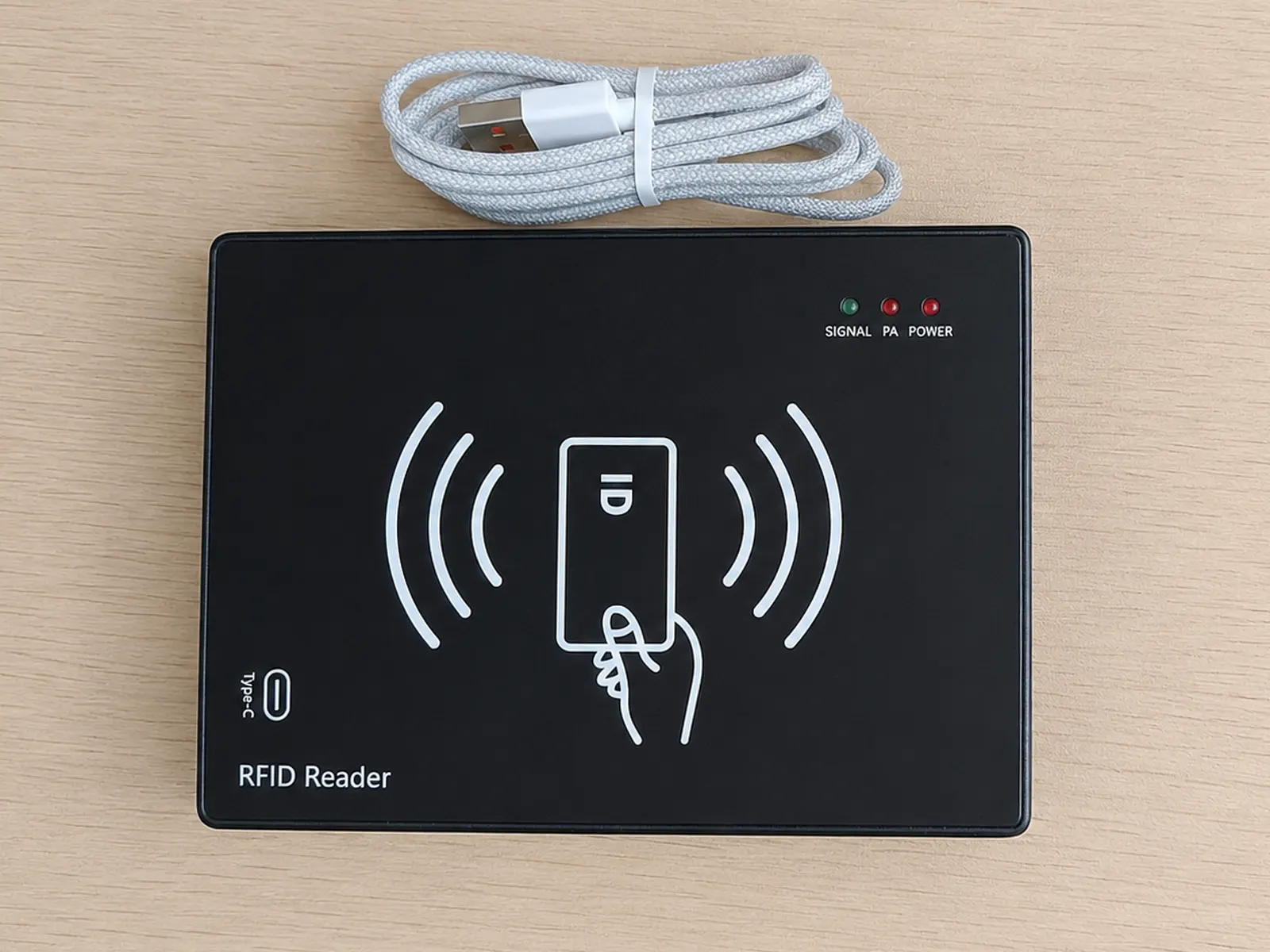

YL-DR100
Compact UHF Desktop Encoder
A compact UHF desktop encoder for initializing asset tags, merchandise tags, and business cards, with adjustable output power and Type-C connectivity for fixed workstations.
149×107mmDesktop Footprint
0–27dBmOutput Power
0–60cmRead Distance
260gDevice Weight
Compact Desktop Deployment for Single-Tag Operations
Designed for space-limited counters and worktops used for tag encoding, writing, binding, querying, and testing.
02
Adjustable UHF Output
Software-adjustable output from 0 to 27 dBm helps control the practical read range for the intended tags.
03

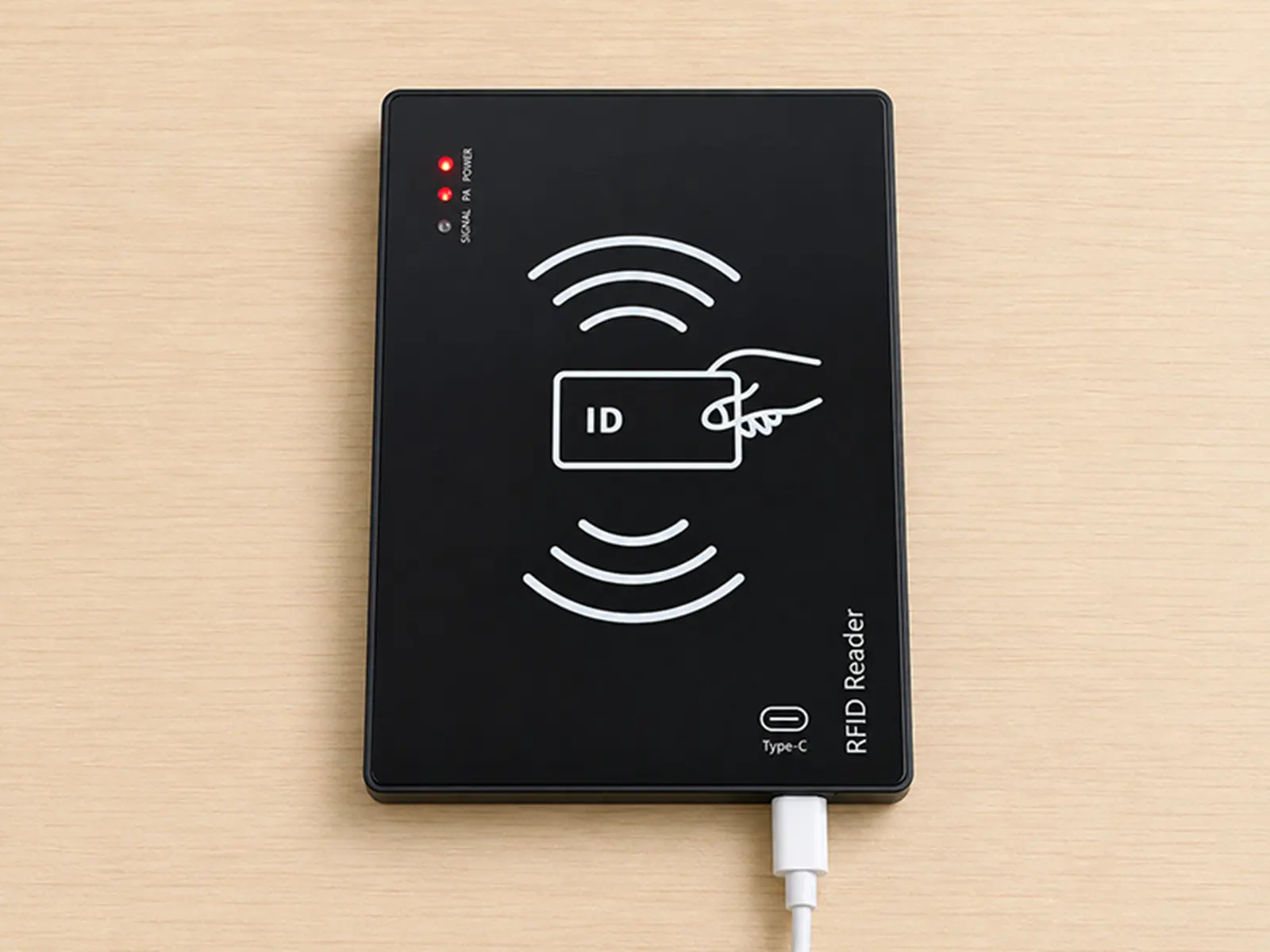

Type-C Connectivity
Connects to a computer through Type-C with USB power for routine encoding and testing.
04
Development Resources
Provides demo software, an SDK, and C#, Android, and Java examples; confirm the delivered package by project.
Technical Specifications
Structure and Power
- Product Form
- Compact Desktop Encoder
- Dimensions
- 149×107×14mm
- Weight
- 260g
- Enclosure
- Aluminum Alloy and Tempered Glass Panel
- Power Supply
- USB Power
RFID and Interfaces
- Frequency band
- 840–960MHz
- Antennas
- 0 dBi circularly polarized antenna
- Protocol
- EPC C1G2 and ISO 18000-6B/6C; optional GB/T 29768-2013 and GJB 7377.1-2011
- Output Power
- 0–27dBm
- Read Distance
- 0–60cm
- Data interface
- Type-C
- Security Features
- Supports encryption and anti-copy functions; confirm per project
Environment and Development
- Operating Temperature
- -20°C to 55°C
- Storage temperature
- -40°C to 80°C
- Test Software
- Demo Software
- Development support
- SDK and C#, Android, and Java examples according to the delivery list
Validate read/write boundaries with the intended tags on site.
Best for
01
Asset Tag Initialization
Write the asset ID and bind it to the system record.
02
Merchandise Tag Encoding
Encode and verify merchandise tags at a counter or back-office workstation.
03
Archive Tag Registration
Register individual archive, document, or ticket tags.
04
Tag Testing and Diagnostics
Read EPC data, check tag status, and support exception diagnosis.
