Impinj E510 Engine
Integrates an E510 reader module for EPC C1G2 tag reading and writing with RSSI information.
YL-DR400

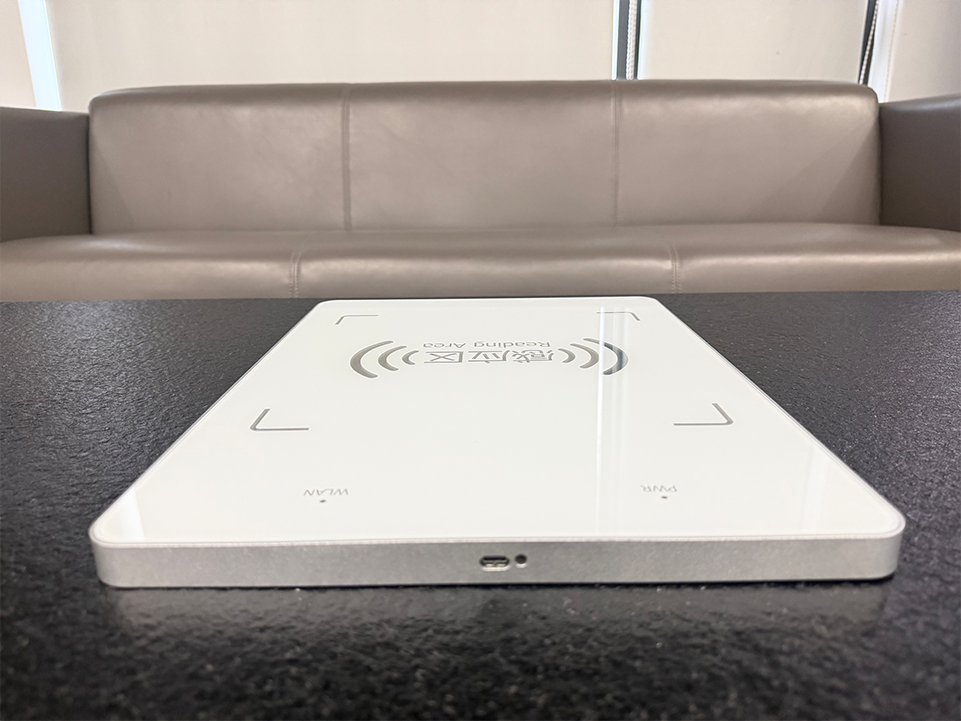

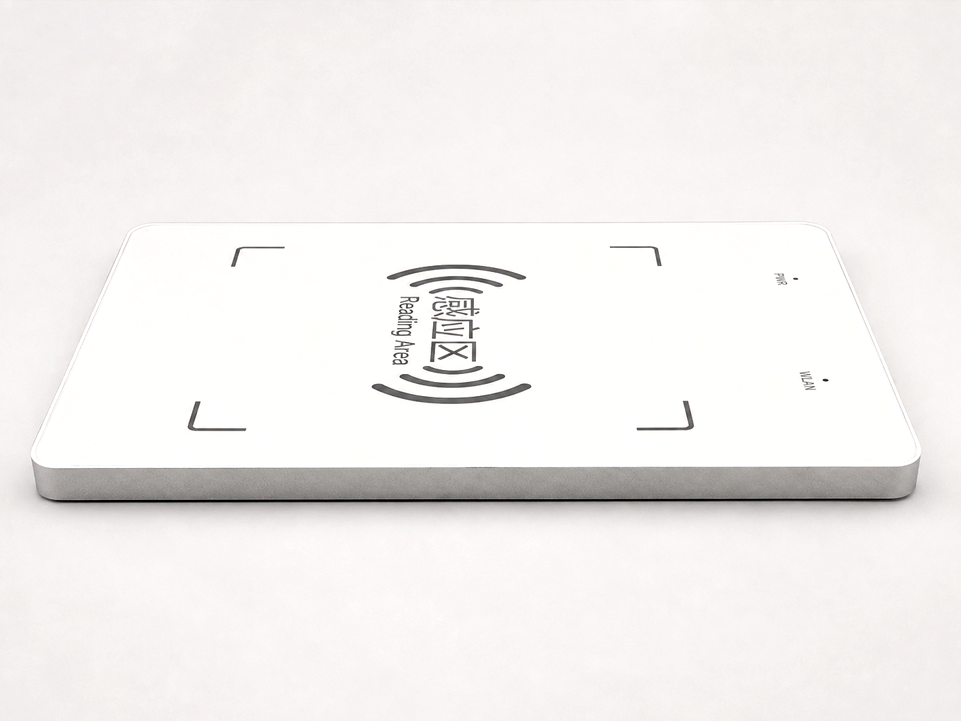

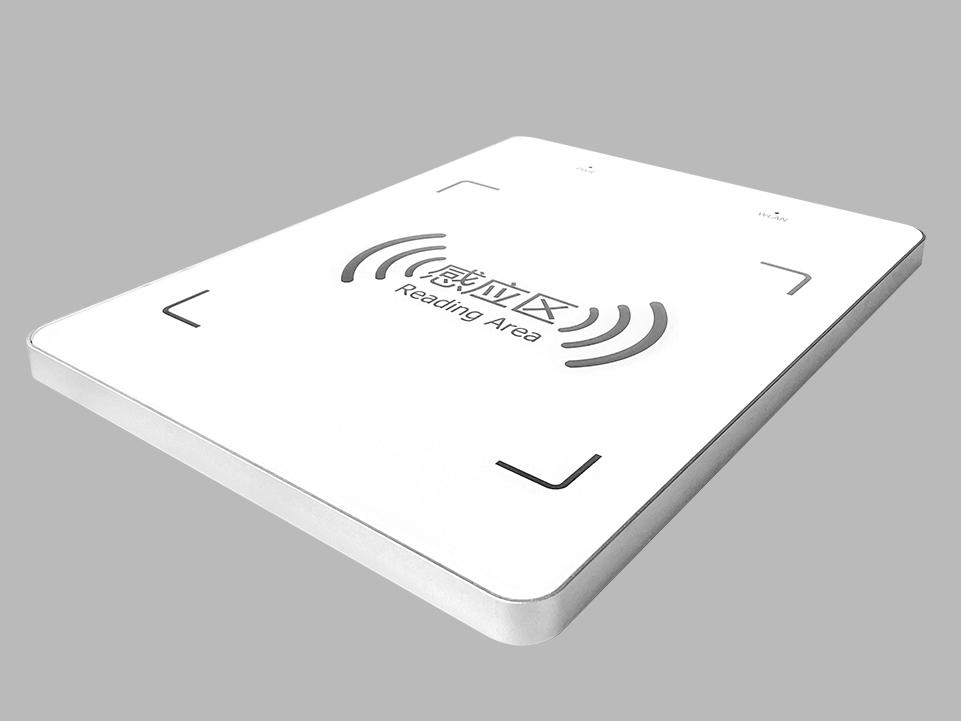

High-Performance UHF Desktop All-in-One Reader
A UHF desktop all-in-one reader for dense tag processing and fixed-workstation capture, using an Impinj E510 engine, near-field antenna, and adjustable output power.
300×400mmReading Worktop
Impinj E510Reader Engine
Up to 33 dBmOutput Power
5–8WPower Consumption
Integrated E510 Reader Engine and Desktop Near-Field Antenna
Designed for fixed-point data capture in laundry, footwear and apparel, manufacturing, bank documents, libraries, and archives.
02
Near-Field Zone Control
The built-in near-field antenna controls the worktop read area; validate practical boundaries with the intended tags.
03
Multi-Tag Processing
Supports dense reading and multi-tag processing; use speed and capacity figures only with the relevant test conditions.
04
Middleware and Development
USB connects the device. Confirm other network protocols and development-environment support through the middleware and project list.
Technical Specifications
Structure and Power
- Product Form
- UHF Desktop All-in-One Reader

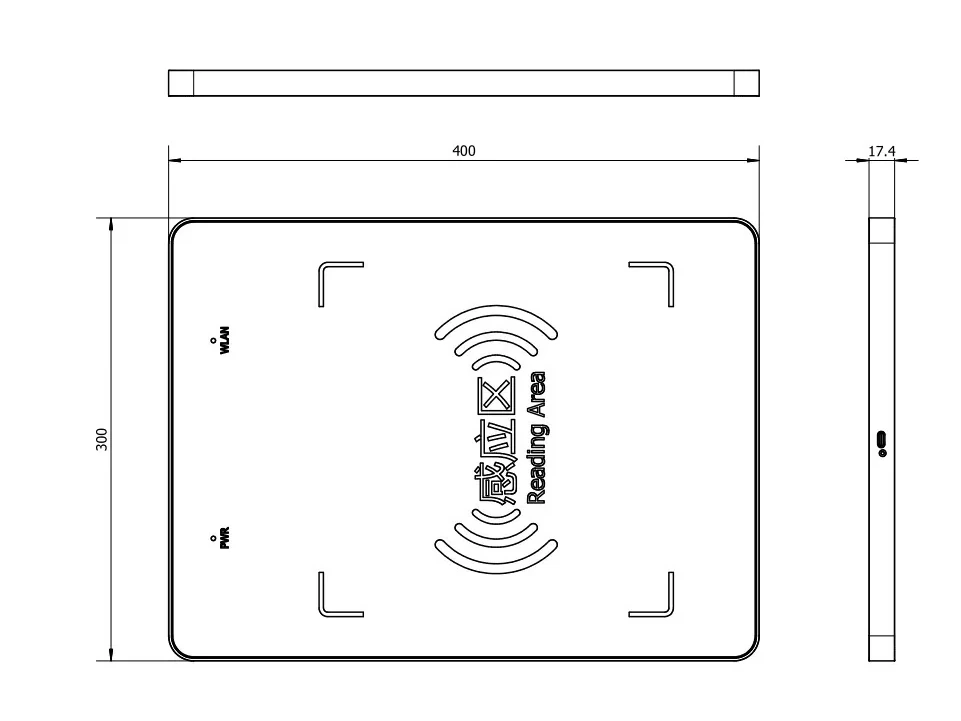

- Dimensions
- 300×400×17.5mm
- Enclosure
- Tempered-glass surface and aluminum-alloy enclosure
- Power Supply
- USB or 5 V / 2 A power adapter
- Power Consumption
- 5–8W
RFID Performance
- Reader Engine
- Impinj E510
- Frequency band
- 865–868 MHz / 902–928 MHz, configured by region
- Protocol
- EPC C1G2 / ISO 18000-6C
- Operating Modes
- Operates in wideband frequency hopping (FHSS) or fixed-frequency transmit mode
- RFID Read/Write Power
- Software-adjustable in ±1 dB steps, up to 33 dBm
- Antennas
- 1 near-field antenna
- Read Speed
- over 400 tags/s
- Tag Buffer
- 200,000 tags at 96-bit EPC
- Signal Data
- RSSI supported
Interfaces and Environment
- Hardware Interface
- USB
- Indicator Lights
- POWER: red LED (power indicator); TAG: blue LED (tag operation indicator)
- Communication Protocols
- RS232, TCP/IP, Modbus, HTTP(S), MQTT, and RabbitMQ; confirm device/middleware boundaries per project
- Development Languages
- C#、Java
- Development Environments
- Linux, Android, Windows, PLC, and Web according to the delivery list
- Operating Temperature
- -20°C to 55°C
- Storage temperature
- -20°C to 85°C
- Work Humidity
- 5%–95% RH, non-condensing
Confirm test conditions, devices, and middleware boundaries for over 400 tags/s, the 200,000-tag cache, and communication protocols; FCC, RoHS, and similar information are published only after valid certification is obtained.
Best for
01
Laundry and Linen Workstation
Capture linen tags on a fixed worktop and update business status.
02
Footwear and Apparel Manufacturing Workstation
Read work-in-progress or finished-goods tags to support process records.
03
Document and Archive Management
Read and verify document and archive tags at the counter.
04
Book Tag Processing
Register, rewrite, and batch-check book tags.
