01
650 mm Large Worktop
The 650 × 650 mm operating area accommodates stacked tags and larger items.

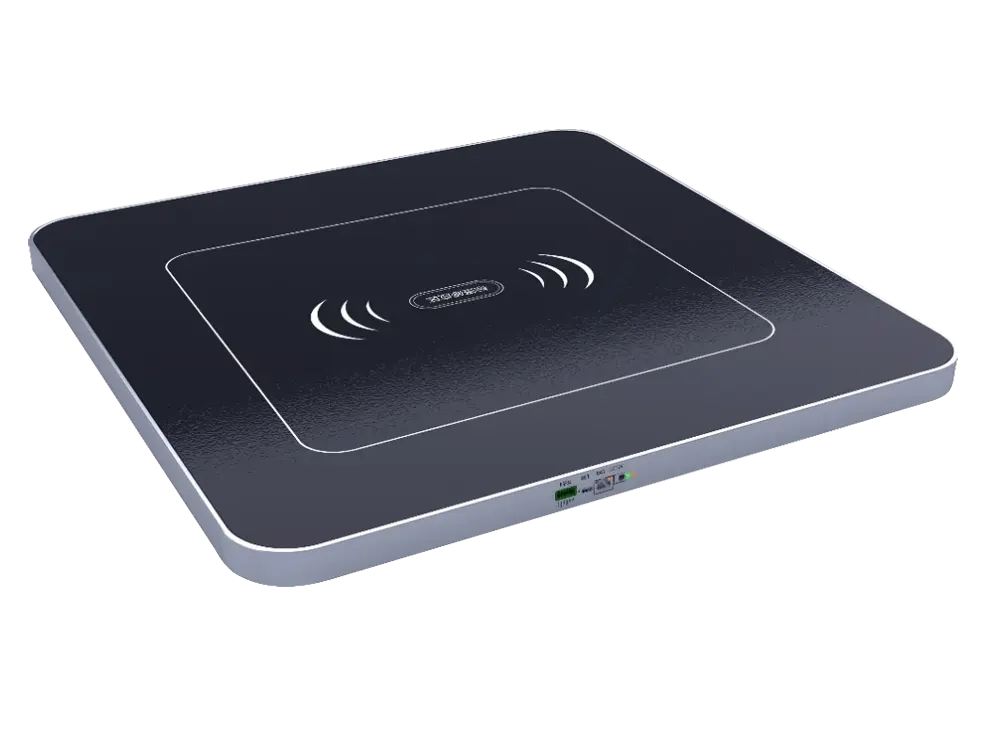

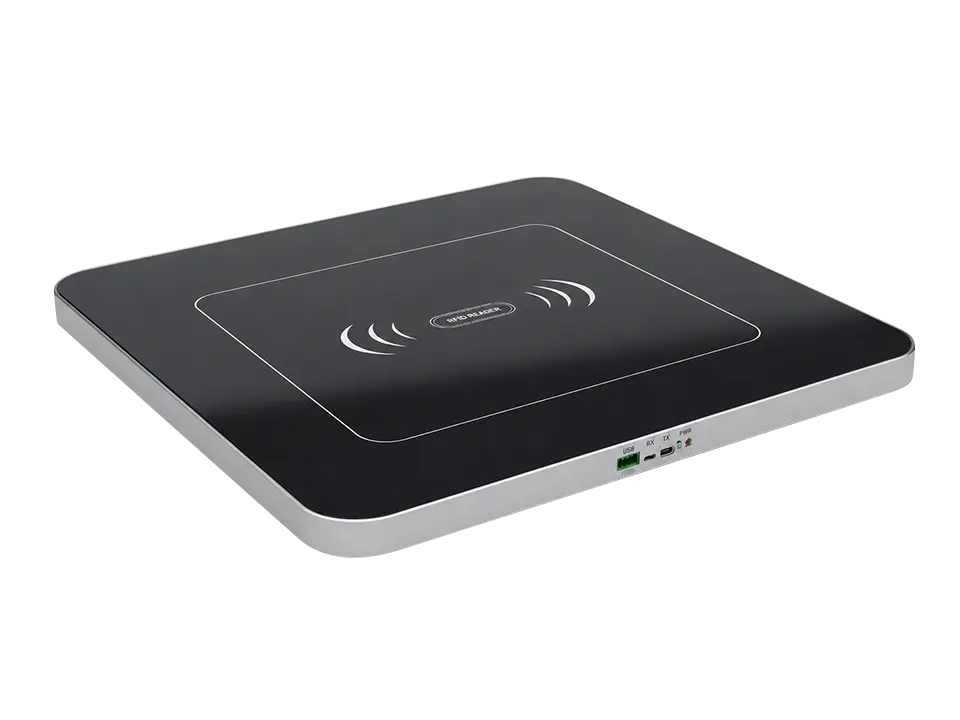

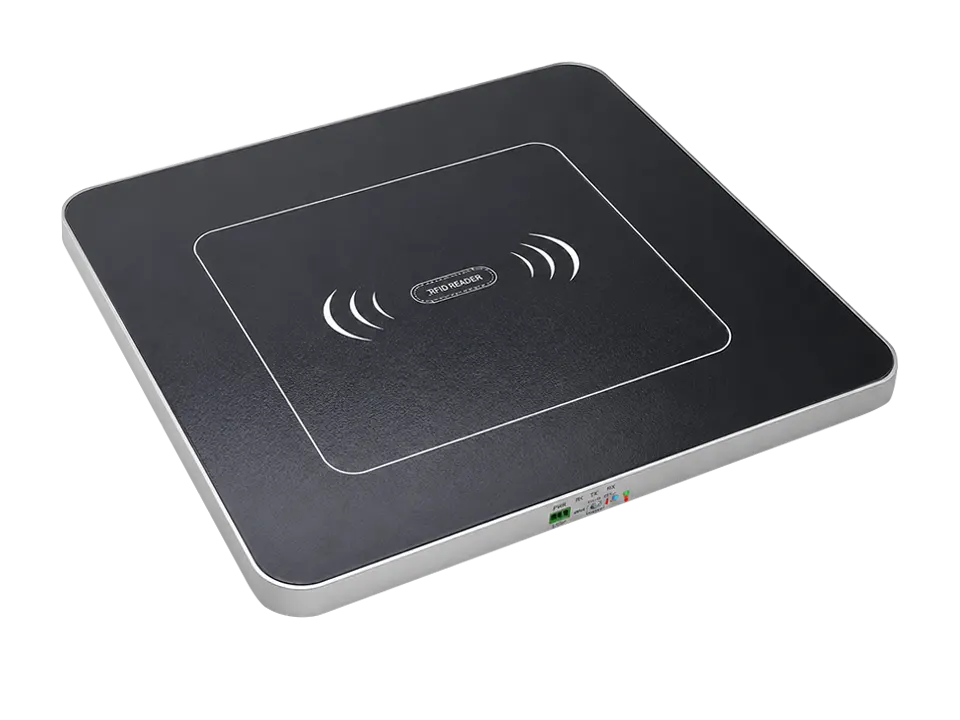

YL-DR500
Large-Area RFID Reading Platform
A large-area RFID reading platform for stacked tags, larger items, and fixed-workstation batch capture, using an Impinj E710 and multiple wired interfaces.
650×650mmLarge Worktop
Impinj E710Reader Chip
up to 50 cmRead Distance
Up to 18 WUnit Power Consumption
Large Worktop, Stacked Tags, and Multiple Interfaces
Designed for assets, books, archives, apparel, and high-value items requiring a larger placement area and fixed-workstation batch reading.
02
Impinj E710 Chip
Uses an E710 reader chip for EPC C1G2 tag reading and writing with adjustable output power.
03
Combined Near- and Far-Field Design
Uses near-field coverage and a narrow far-field beam; validate the practical range with the tags and workstation.
04
Multiple Wired Interfaces
Provides RJ45, USB, and RS232 for computers, networks, and business equipment.
Technical Specifications
Structural Specifications
- Product Form
- Large-Area Desktop Reading Platform

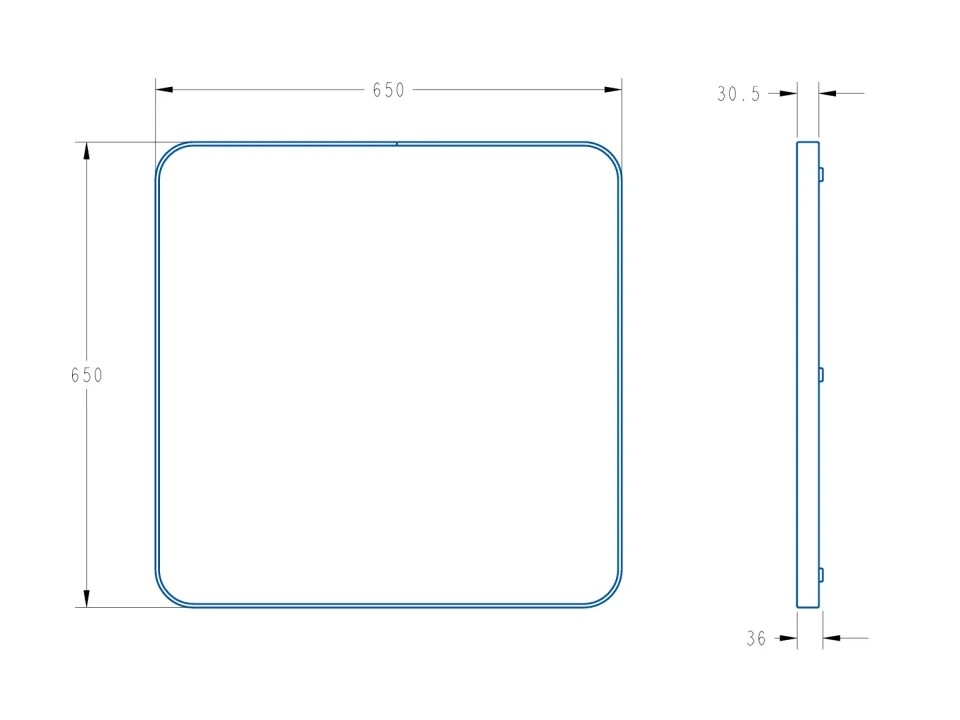

- Dimensions
- 650×650×36mm
- Net Weight
- 10kg
- Materials
- Aerospace aluminum, tempered glass, and carbon structural steel
RFID Performance
- Reader Chip
- Impinj E710
- Frequency Range
- 840–960 MHz, configured by region
- Protocol
- ISO 18000-6C / EPC C1G2
- Output Power
- Adjustable 8–33 dBm
- Antenna Gain
- -1dBi
- Read Distance
- up to 50 cm
Interfaces and Environment
- External Interfaces
- RJ45、USB、RS232
- Power Input
- AC100–240V，50/60Hz
- Power Consumption
- Up to 18 W
- Operating Temperature
- -10°C to 50°C
- Work Humidity
- 10%–90%RH
The up-to-50 cm read distance and stacked-tag capability require testing for tag placement; the 840-960 MHz range depends on regional configuration.
Best for
01
Stacked Books and Archives
Read tags from multiple books, archives, or documents on the large worktop.
02
Apparel and High-Value Items
Capture tags from stacked apparel or larger high-value items.
03
Asset Handover Workstation
Verify asset tags against handover lists in batches at a fixed workstation.
04
Warehouse Receiving and Shipping Worktop
Connect through network or serial interfaces to record receiving, shipping, and verification results.
Other Desktop Encoders and Readers
Get YL-DR500 Large-Worktop Test Advice
Share item dimensions, tag samples, stacking quantity, and workstation space to confirm power, the read area, and system interfaces.
