01
Near-Field Reading Area
The integrated near-field antenna creates a fixed worktop zone; test practical stray-read control at the workstation.

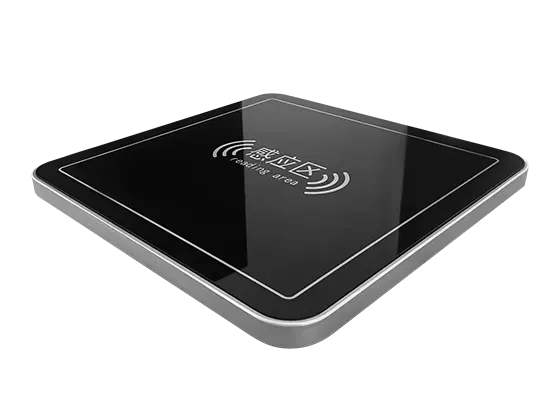

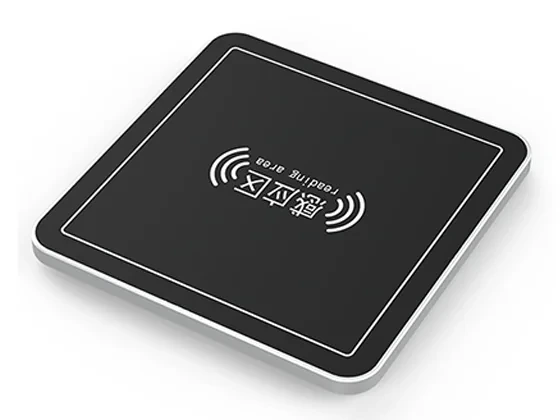

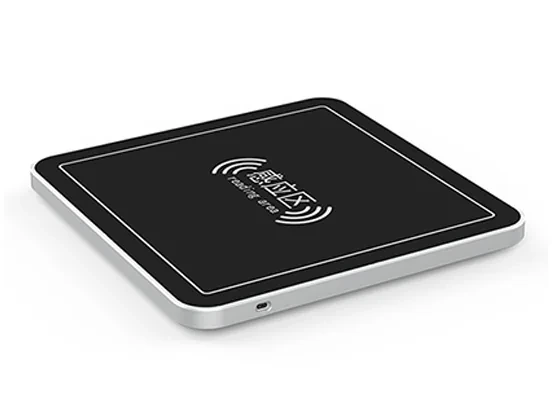

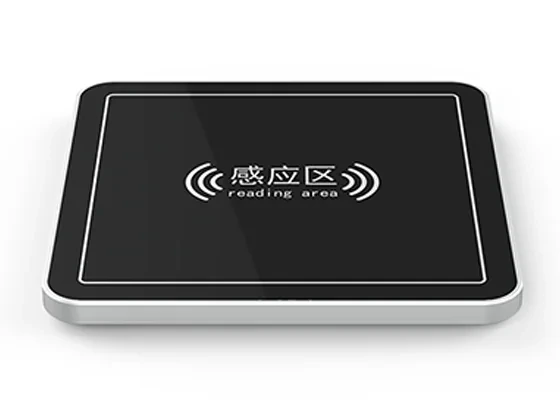

YL-DR300
UHF RFID Desktop Workstation
A UHF RFID desktop workstation for libraries, archives, retail, and checkout counters, combining a near-field antenna and Type-C connectivity to reduce unintended reading or writing outside the worktop.
330×330mmWorktop
0–30dBmOutput Power
5WMaximum Total Power Consumption
2.373kgDevice Weight
Near-Field Reading for Fixed Business Workstations
Designed for librarian workstations, checkout counters, and archive desks used for tag reading, writing, and business-data binding.
02
Adjustable Output Power
Adjustable 0–30 dBm output helps configure the read-zone boundary for the tags and worktop environment.
03
Type-C Communication
Uses a Type-C data interface and DC 5 V power for workstation computers.
04
Fixed Workstations Across Industries
Supports libraries, archives, retail checkout, asset registration, and production workstations.
Technical Specifications
Structure and Power
- Product Form
- UHF RFID Desktop Workstation
- Dimensions
- 330×330×18mm
- Weight
- 2373g
- Material
- Fiberglass
- Power Supply
- DC 5V
- Maximum Power Consumption
- 5W
RFID and Interfaces
- Frequency band
- 902–928MHz
- Protocol
- ISO 18000-6C / EPC C1G2
- Output Power
- Adjustable 0–30 dBm
- Communication Interfaces
- Type-C
Environmental Specifications
- Operating Temperature
- -20°C to 60°C
- Storage temperature
- -30°C to 70°C
- Environmental humidity
- 5%–95% RH, non-condensing
Obtain the required usage authorization before releasing the current candidate images.
Best for
01
Librarian Workstation
Register book tags, verify loans and returns, and update information.
02
Archive Management Workstation
Register, bind, and check archive tags.
03
Retail Counter Checkout
Read merchandise tags and connect them with checkout or inventory workflows.
04
Asset Registration Workstation
Initialize asset tags and bind them to records at a fixed workstation.
Other Desktop Encoders and Readers
Get YL-DR300 Workstation Integration Advice
Share workstation space, tag types, and business-software interfaces to confirm the read area, power, and system integration.
