01
Narrow-Beam Antenna Keeps the Zone Defined
The built-in narrow-beam antenna defines the worktop read boundary and reduces stray reads from tags outside it.

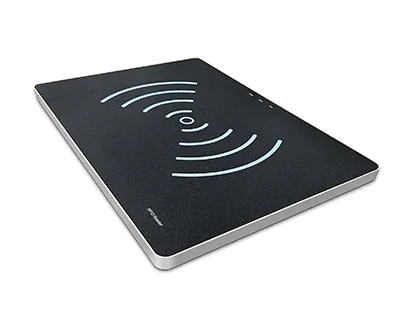

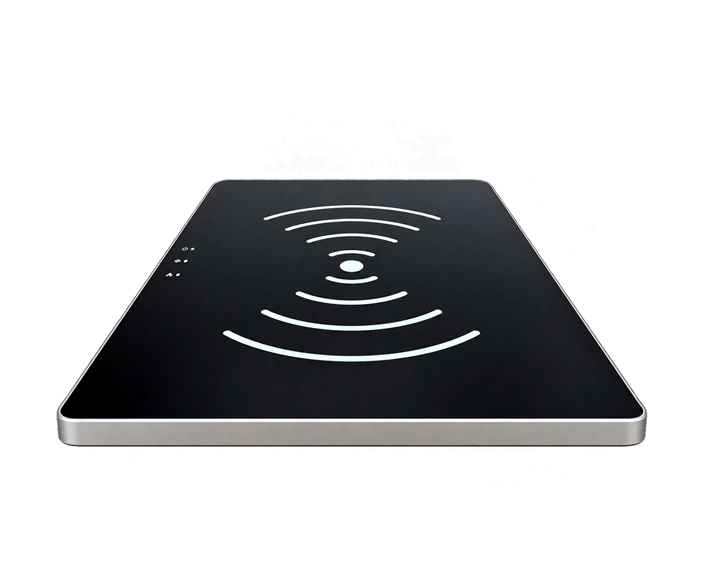

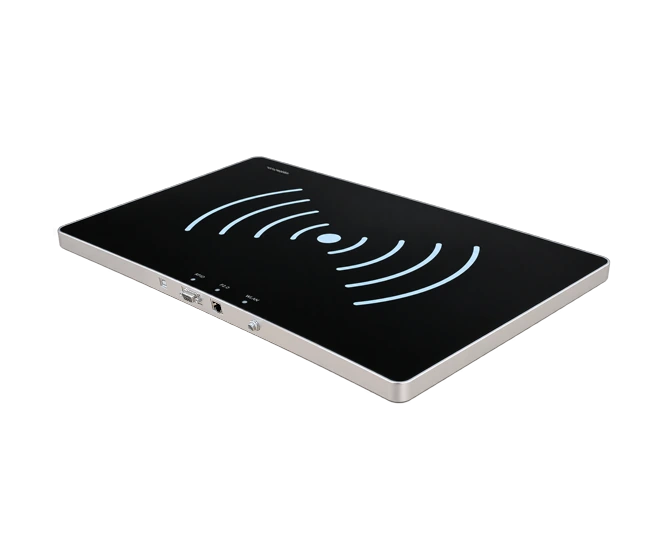

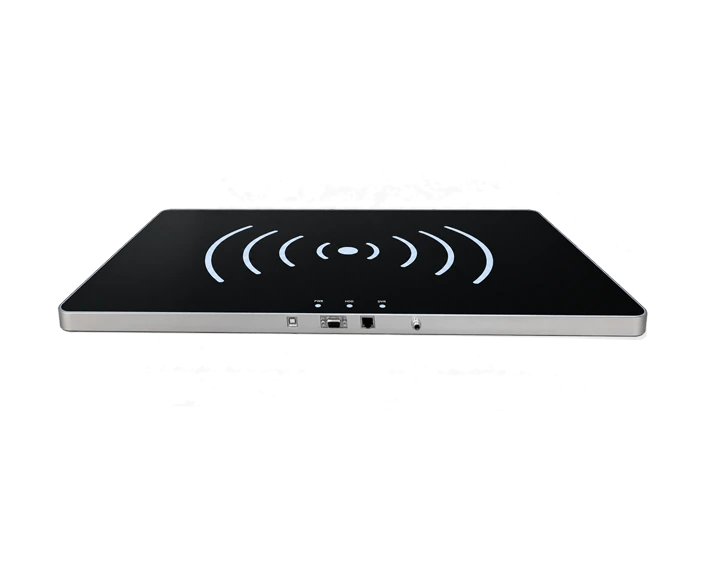

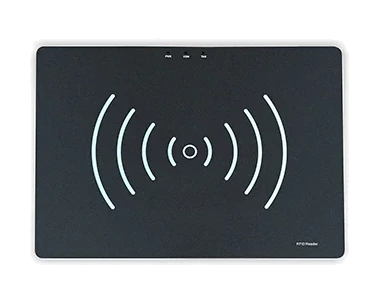

YL-DR600
Large-Area RFID Desktop Data Capture Device
A large-area RFID desktop capture device for full-carton counting, laundry linen, tools, and jewelry, integrating a narrow-beam antenna and reader module on one worktop so read rates stay high while the read zone stays on the worktop.
700×500mmCapture Worktop
IMPINJ E710Reader Chip
0–33dBmMaximum Output Power
4.5kgNet Weight
Large Worktop with Narrow-Beam Antenna and Selectable Reader Chip
Place a full carton or tray directly on the worktop, and choose the E710, E510, or E310 reader chip according to read speed and budget.
02
Three Reader Chip Options
Supports the IMPINJ E710, E510, and E310, with peak tag query rates above 900, 600, and 350 tags/s respectively.
03
700 × 500 mm Capture Worktop
A 24.5 mm slim body lets full cartons, stacked linen, or tool trays be read directly on the worktop.
04
RS232 Integration and Development Support
Provides an RS232 interface with C# and Java support for connection to existing business systems.
Technical Specifications
Structure and Installation
- Product Type
- Large-area desktop data capture device
- Device Dimensions
- 700×500×24.5mm (±2)
- Package Dimensions
- 760×570×105mm (±5)
- Net Weight
- 4.5kg (±0.01)
- Gross Weight
- 5.9kg (±0.01)
- Antenna
- Built-in narrow-beam antenna that constrains the worktop read zone
- Enclosure

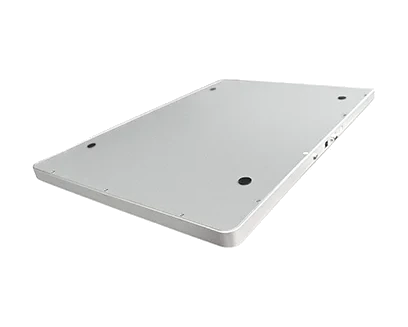

- Wear-resistant acrylic surface with an aluminum-alloy enclosure
RFID Performance
- Protocols
- EPCglobal C1 Gen2 / ISO 18000-6C
- Frequency Range
- 865–868 MHz / 902–928 MHz, adjustable by country or region
- Reader Chip
- IMPINJ E710 / E510 / E310, selected per application
- Receiver Sensitivity
- E710: -87dBm; E510: -81dBm; E310: -74dBm
- RFID Read/Write Power
- Adjustable 0–33 dBm, ±1.0 dB
- Read Distance
- E710: over 8 m; E510: over 6 m; E310: over 5 m (tested with tag 9662)
- Read Speed
- E710: over 900 tags/s; E510: over 600 tags/s; E310: over 350 tags/s (peak query rate)
- RSSI Strength Detection
- Supported
- Automatic Antenna Detection
- Supported
Power, Interfaces, and Environment
- Power Supply
- AC 100–240 V / 50–60 Hz adapter with 12 V / 4 A DC output; or 12–24 V / 4 A DC input
- Power Consumption
- 5W–24W
- GPIO
- None
- Communication Interfaces
- RS232
- Development Languages
- C# / JAVA
- Operating Temperature
- -20°C to 55°C
- Storage temperature
- -20°C to 85°C
- Work Humidity
- 5%–95% RH, non-condensing
Read distance and query rates are the rated capabilities of the reader chip, tested with tag 9662 and varying with tag type. In desktop use the practical read zone depends on the built-in narrow-beam antenna, the tags, and how they are placed; confirm through sample testing.
Best for
01
Full-Carton Merchandise Counting
Place a full carton on the worktop and read the merchandise tags inside in one pass.
02
Laundry Linen Counting
Count stacked linen in batches and verify handovers.
03
Tool and Equipment Counting
Place a tray or tool bag on the worktop to check registered tools quickly.
04
Jewelry and High-Value Item Counting
Read tags on small high-value items in one pass and verify the results.
